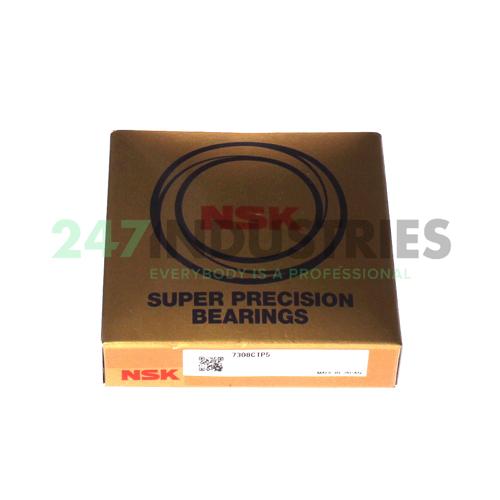

7308CTP5 NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. C 15° Contact Angle
2. T Machined Laminated Phenolic Cage (Single Row Radial or A. C. Bearings)
3. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 7308CTP5 NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.61

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P5 Precision (Higher than P6)
4. Contact Angle 15 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
