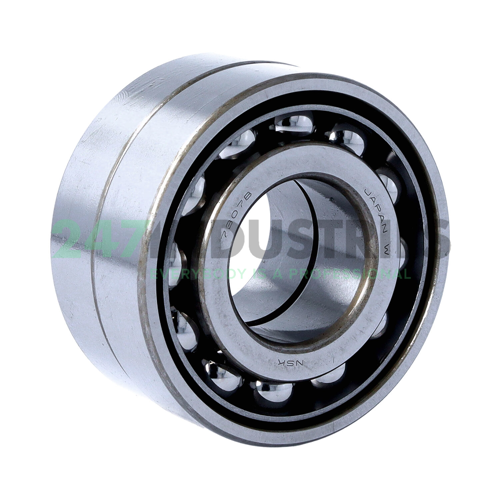

7307BWDF NSK

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 42
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.6535

Suffix description

1. BW Contact Angle Of 40 Degrees Pressed Steel Retainer, One-Piece Type

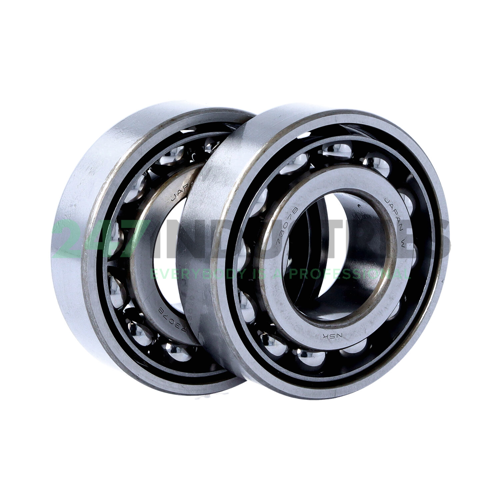

2. DF Two Single Row Angular Contact Ball Bearings Matched For Mounting In A Face-To-Face Arrangement

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 7307BWDF NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.888

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing DF - X-arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
