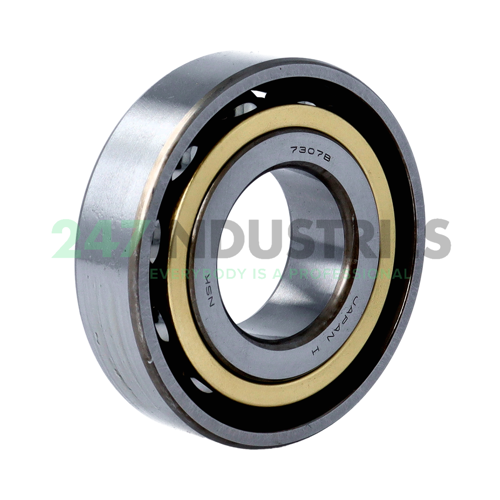

7307BG NSK

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. B 40° Contact Angle
2. G Ball Bearing, Angular Contact, Single Row, Flush Ground Inner And Outer Ring Side Faces

Technical details

1. Availability 11 pcs
2. Brand NSK
3. Item number 7307BG NSK
4. EAN 00029176712043
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.456

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
