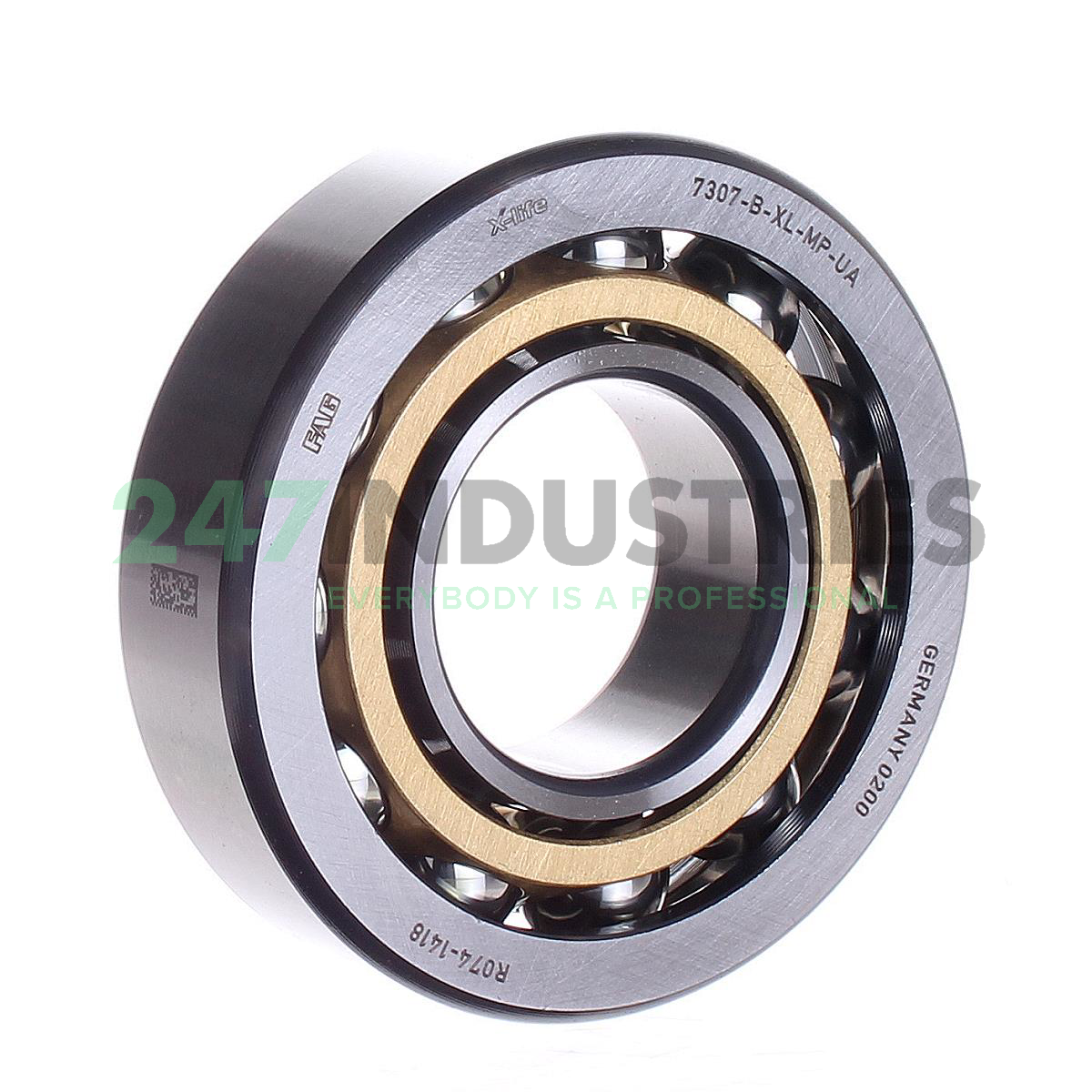

7307B.TVP.UA Neutral

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 80,00
3. Width (B) MM 21,00

Suffix description

1. B 40° Contact Angle
2. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
3. UA Universal Mounting, With O And X Configurations The Bearing Pair Has Small Axial Clearance

Technical details

1. Availability 0 pcs
2. Brand Neutral
3. Item number 7307B.TVP.UA Neutral
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.479

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload UA - Universal design for fitting in pairs, bearing pair has slight axial internal clearance in O and X arrangements
7. Lubrication Standard Lubrication
