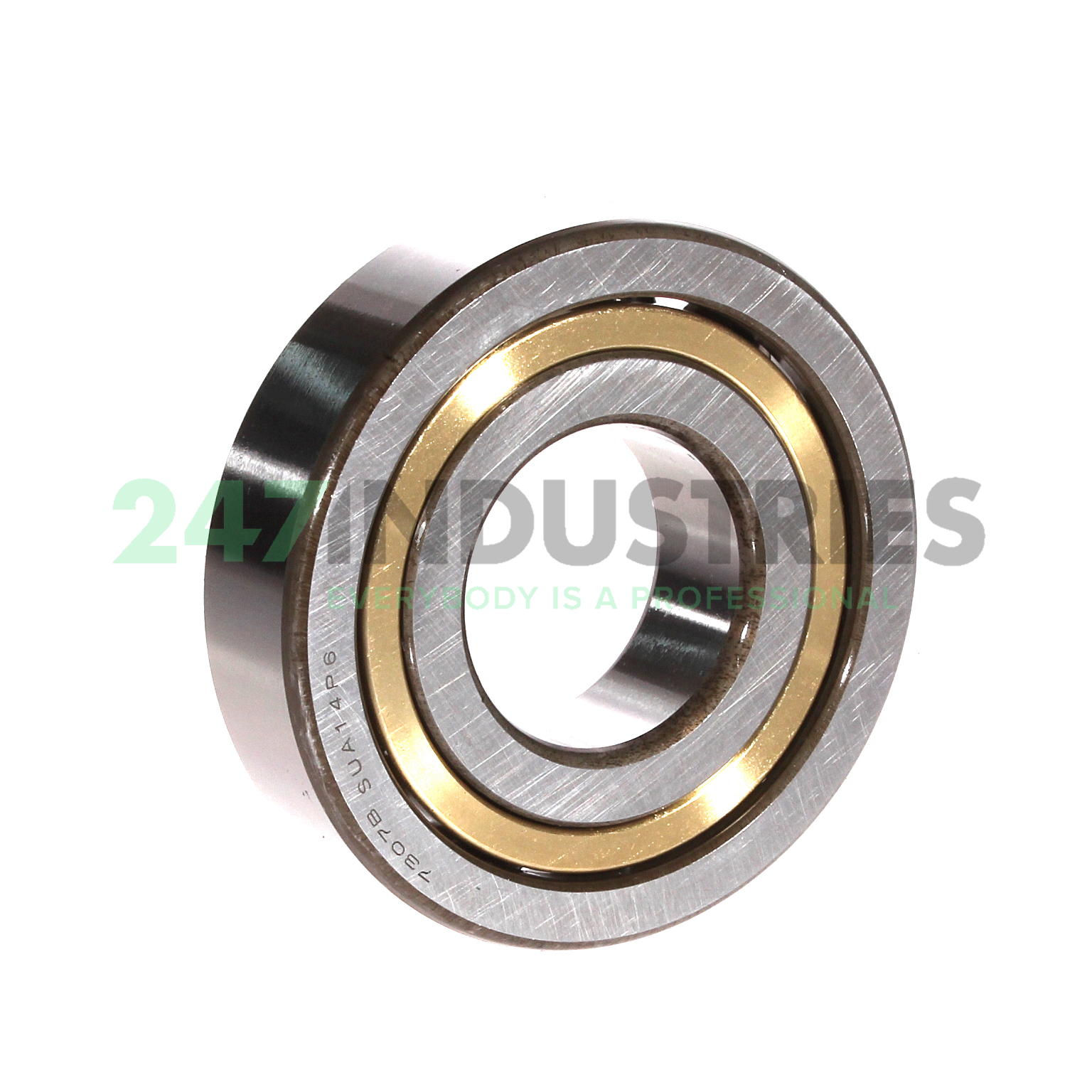

7307B SU A14 P6 NSK

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. B 40° Contact Angle
2. SU Single Bearing, Universally Ground
3. A14 Axial clearance of 14 microns
4. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7307B SU A14 P6 NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.444

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P6 Precision (Higher than Standard)
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload 14 μm
7. Lubrication Standard Lubrication
