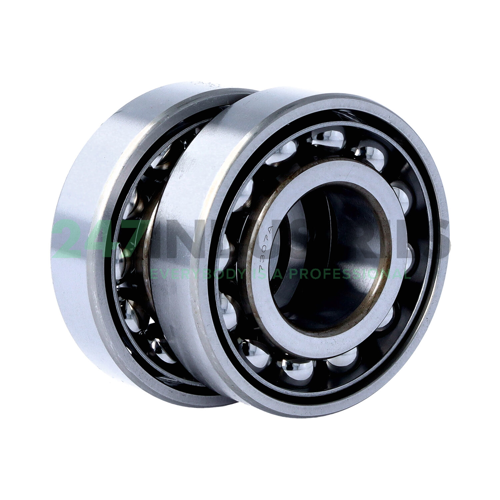

7307AWDB NSK

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 42
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.6535

Suffix description

1. A 30° Contact Angle
2. W Steel Cage
3. DB Set Of 2 Bearings O-Arrangement

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7307AWDB NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.888

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 30 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
