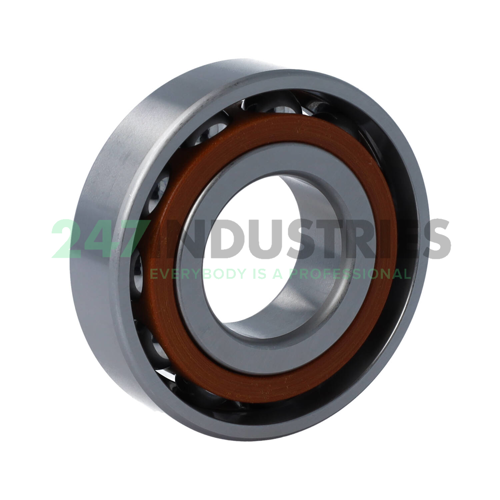

7307ATP5 NSK

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. A 30° Contact Angle
2. T Machined Laminated Phenolic Cage (Single Row Radial or A. C. Bearings)
3. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 4 pcs
2. Brand NSK
3. Item number 7307ATP5 NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.444

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P5 Precision (Higher than P6)
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
