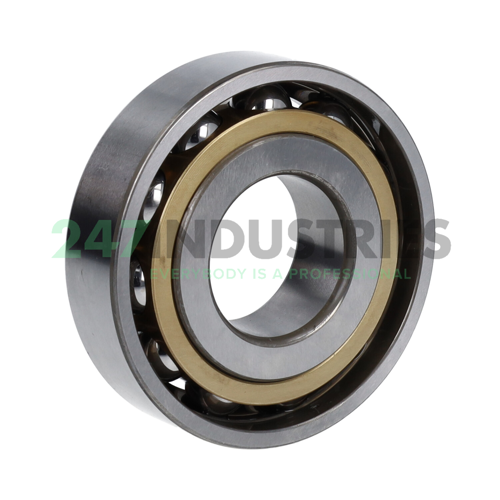

7306BM U C3 Nachi

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748

Suffix description

1. B 40° Contact Angle
2. M Machined Brass Cage, Located On The Rolling Elements
3. U Universally Faced Single Bearing
4. C3 Axial Clearance Larger Than Standard

Technical details

1. Availability 28 pcs
2. Brand Nachi
3. Item number 7306BM U C3 Nachi
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.362

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
