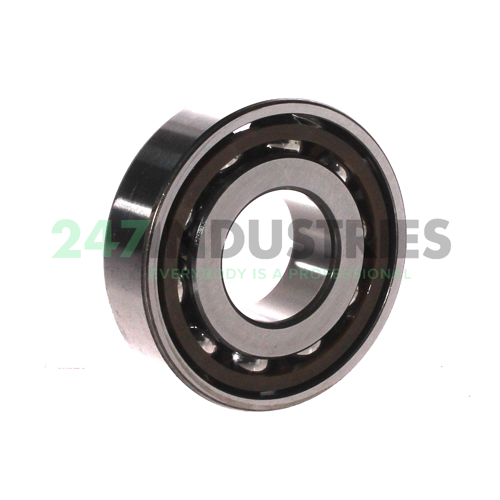

7306BETN RHP

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
2. TN Polyamide Cage, Ball Located

Technical details

1. Availability 0 pcs
2. Brand RHP
3. Item number 7306BETN RHP
4. Also known as 7306BEP
   7306-B-TVH

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.331

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
