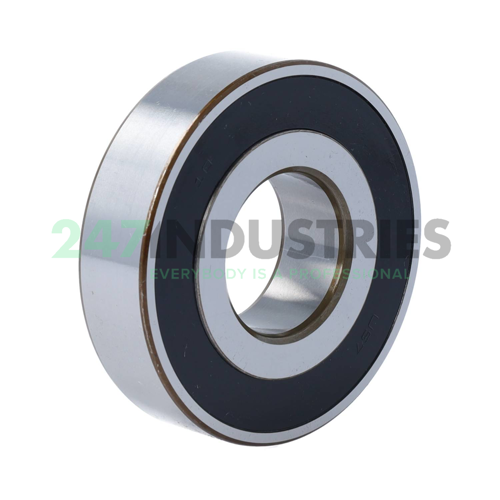

7306BE-2RZP Neutral

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
2. 2RZ Ball Bearing To DIN 623, Two Low Friction (Gap) Seals
3. P Injection Moulded Window-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered

Technical details

1. Availability 51 pcs
2. Brand Neutral
3. Item number 7306BE-2RZP Neutral
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.331

Product Properties

1. Seal 2RZ - Rubber and Steel Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
