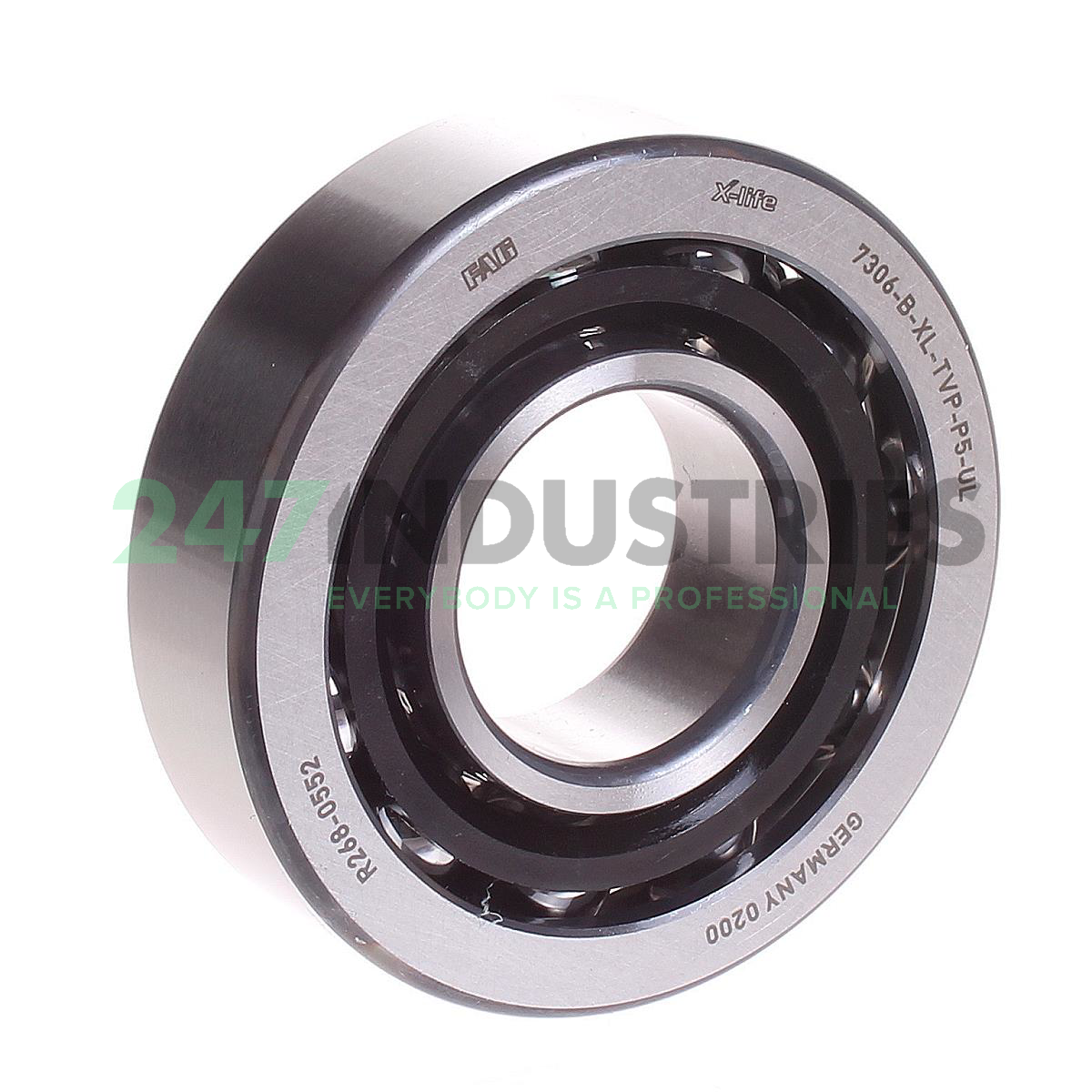

7306B.TVP.P5.UL Deutsche Kugellag Fabr Leipzig

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 72,00
3. Width (B) MM 19,00

Suffix description

1. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
2. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5
3. UL Single Bearing, Universal, Light Preload

Technical details

1. Availability 0 pcs
2. Brand Deutsche Kugellag Fabr Leipzig
3. Item number 7306B.TVP.P5.UL Deutsche Kugellag Fabr Leipzig
4. Also known as 7306B.TVP.P5

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.349

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P5 Precision (Higher than P6)
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
7. Lubrication Standard Lubrication
