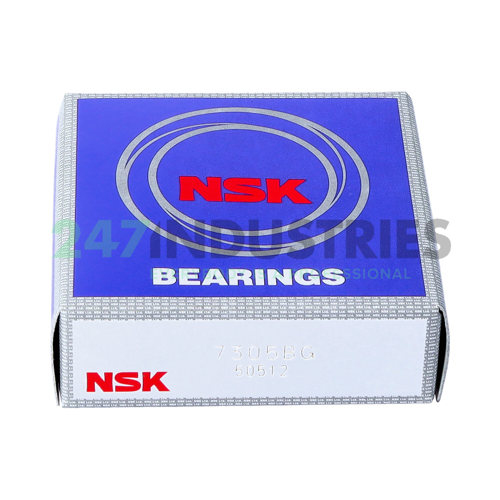

7305BG NSK

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 17
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693

Suffix description

1. B 40° Contact Angle
2. G Ball Bearing, Angular Contact, Single Row, Flush Ground Inner And Outer Ring Side Faces

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7305BG NSK
4. EAN 00029176814111
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.2233

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
