7304 FAG

Single row angular contact ball bearing

Stock
not in stock
Brand FAG
Article number 7304 FAG
Inside diameter 20mm
Outside diameter 52mm
Width 15mm
Product description

The 7304 FAG is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 7304 FAG

Product
Dimensions/Properties
Stock
Price ex VAT

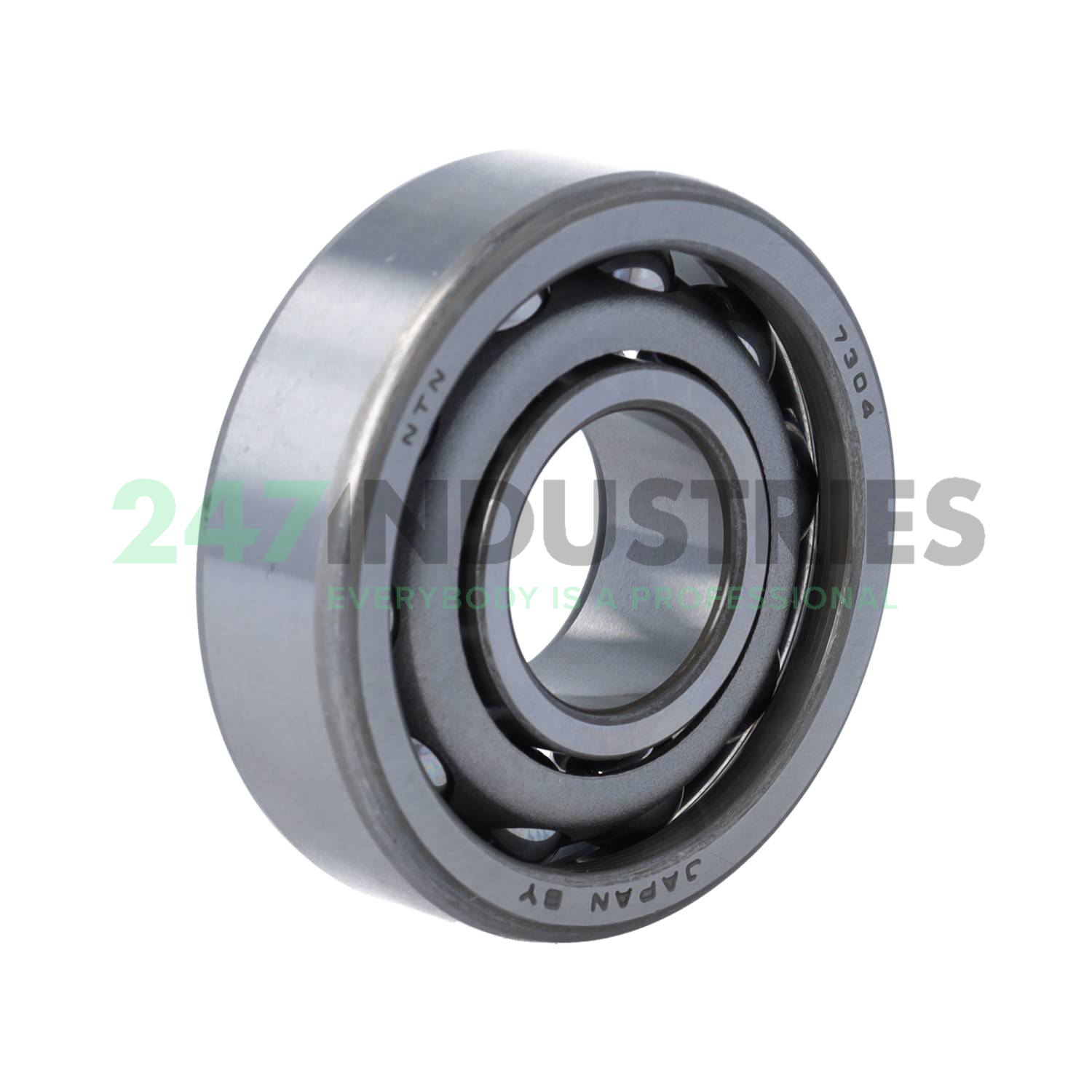

7304 NTN
7304 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)
16,76 ex VAT
  • Inside diameter 20,00mm
  • Outside diameter 52,00mm
  • Width 15,00mm
7304 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)

10 pcs
16,76 ex VAT
IR8024 IRB Rolamentos
IR8024 IRB Rolamentos
Guaranteed same day shipment on orders placed before 18:00h (CET)
10,54 ex VAT
  • Inside diameter 20mm
  • Outside diameter 52mm
  • Width 15mm
IR8024 IRB Rolamentos
Guaranteed same day shipment on orders placed before 18:00h (CET)

10 pcs
10,54 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 52
  3. Width (B) MM 15
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 2.0472
  6. Width (B) Inch 0.5906

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number 7304 FAG
  4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.136

Product Properties

  1. Seal No Seal
  2. Cage Type S - Steel or Standard Cage
  3. Precision Standard Precision
  4. Contact Angle Standard Contact Angle
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication
