7304-B-XL-MP-UA FAG

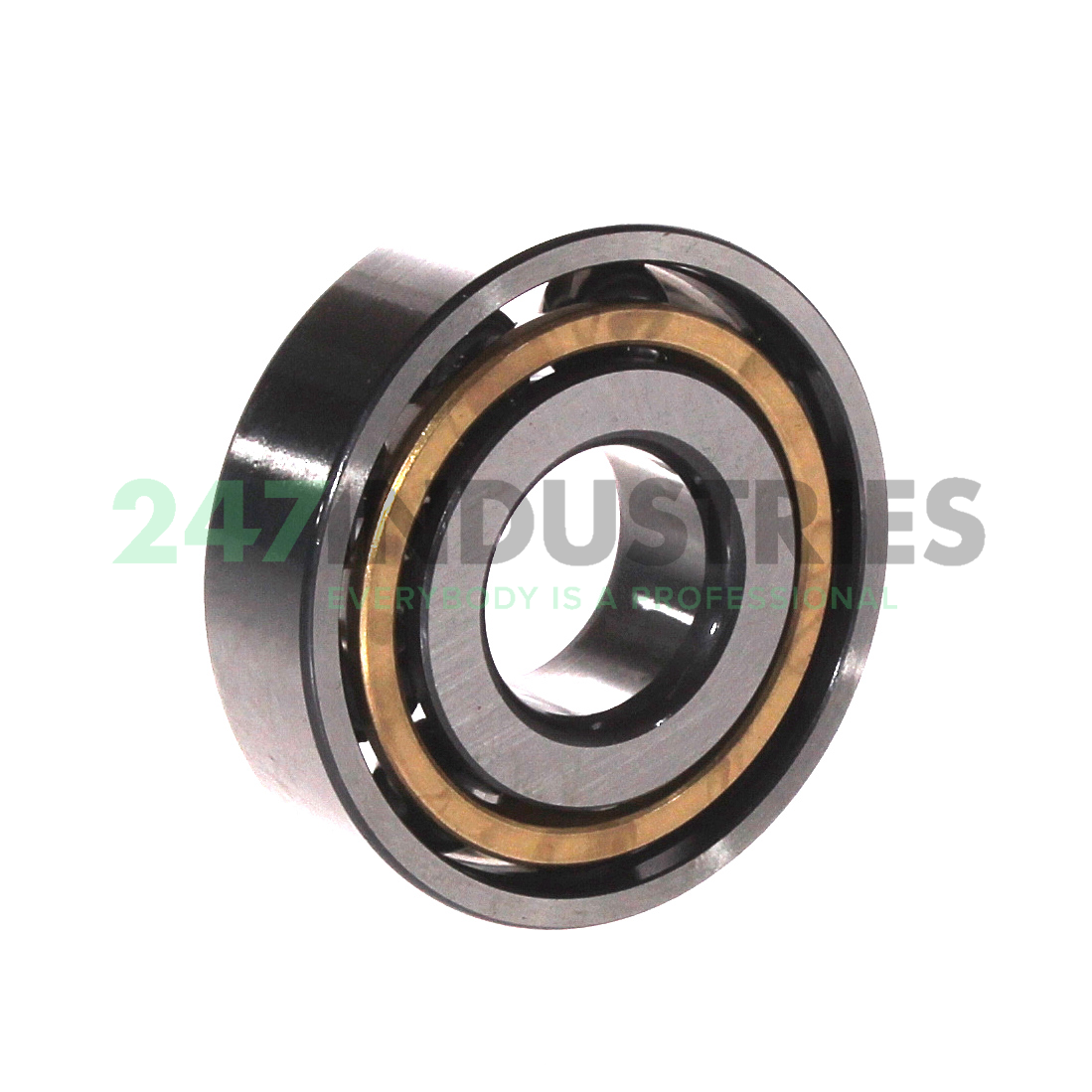

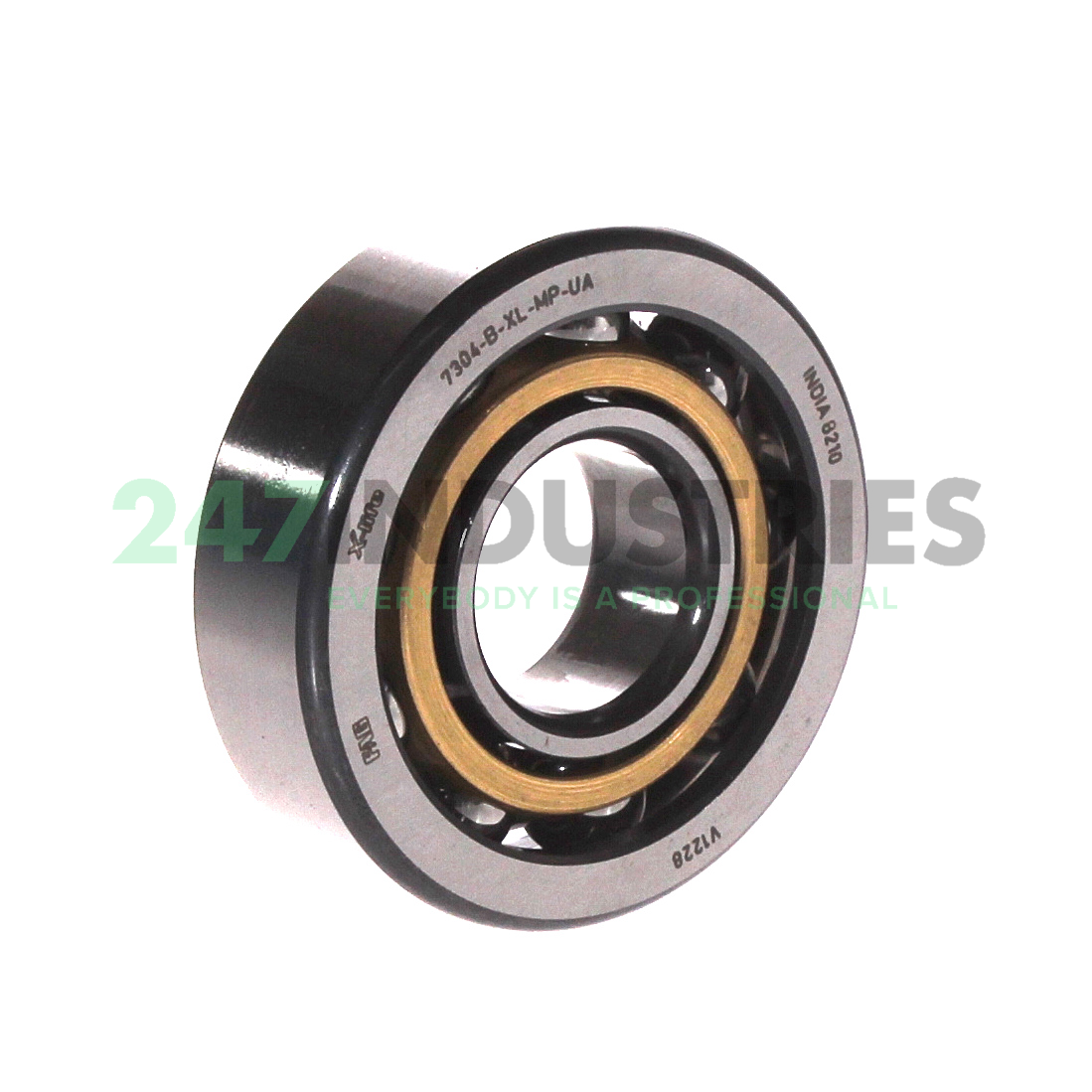

The 7304-B-XL-MP-UA FAG is a single row angular contact ball bearing with a brass cage and no seal.

Stock
not in stock
Brand FAG
Article number 7304-B-XL-MP-UA FAG
Inside diameter 20,00mm
Outside diameter 52,00mm
Width 15,00mm
Product description
Angular Contact Ball Single Row
Read more Show less
Help with this product

Similar to: 7304-B-XL-MP-UA FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20,00
  2. Outer (D) MM 52,00
  3. Width (B) MM 15,00

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number 7304-B-XL-MP-UA FAG
  4. Technical details (B-XL-MP-UA) B=(B-SKF)=40° Contact Angle. XL=X-Life. MP=Machined Brass Cage, Window Type, Rolling Element Riding. UA=Universal Mounting, With O And X Configurations The Bearing Pair Has Small Axial Clearance.
  5. Also known as 4026677181442
    7304-B-MP-UA
  6. Category Angular Contact Ball Bearing Single Row
  7. Weight (kg) 0.1360
  8. Manufacturer Part Number (MPN) 7304-B-XL-MP-UA
  9. Seal No Seal
  10. Cage Type M - Brass Cage
  11. Precision Standard Precision
  12. Contact Angle 40 Degrees
  13. Pairing G - Universal Pairing
  14. Axial Internal Clearance / Preload UA - Universal design for fitting in pairs, bearing pair has slight axial internal clearance in O and X arrangements
  15. Lubrication Standard Lubrication
