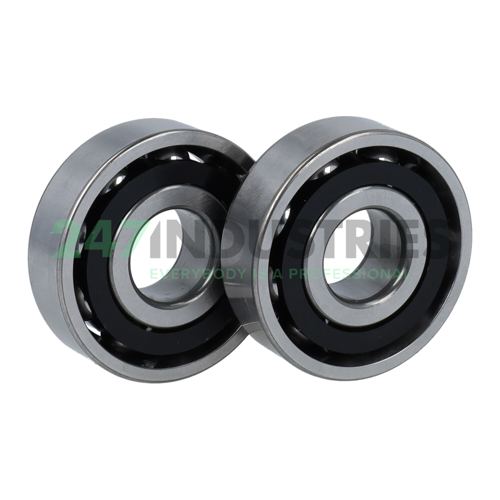

7303CDB/GNP5 NTN

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 47
3. Width (B) MM 28

Suffix description

1. 7226C Machined High Tensile Brass Cage
2. C 15° Contact Angle
3. DB Duplex (Back To Back)
4. GN Normal Preload
5. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 1 pc
2. Brand NTN
3. Item number 7303CDB/GNP5 NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.118

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P5 Precision (Higher than P6)
4. Contact Angle 15 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
