7303BEAT85SUCNB NSK

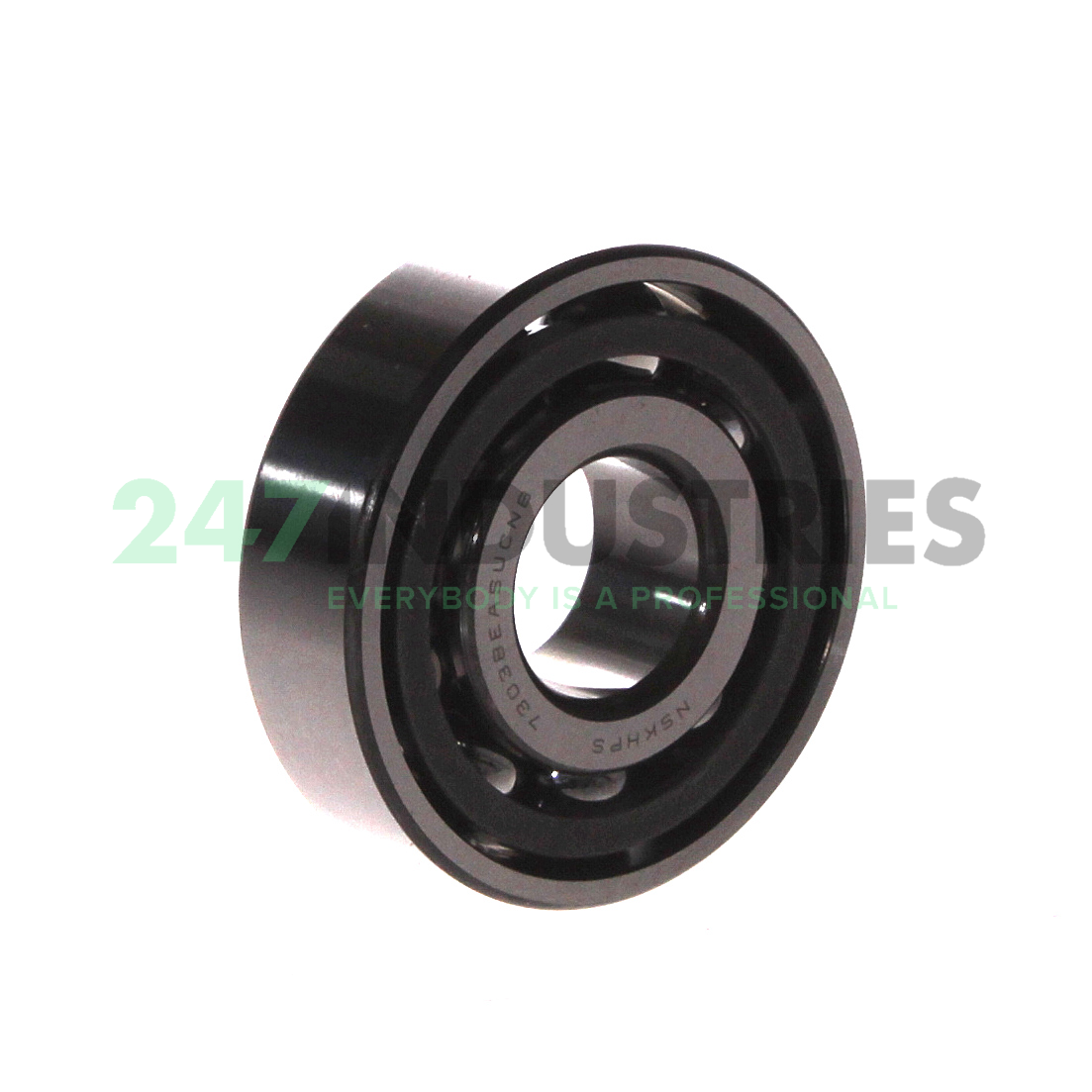

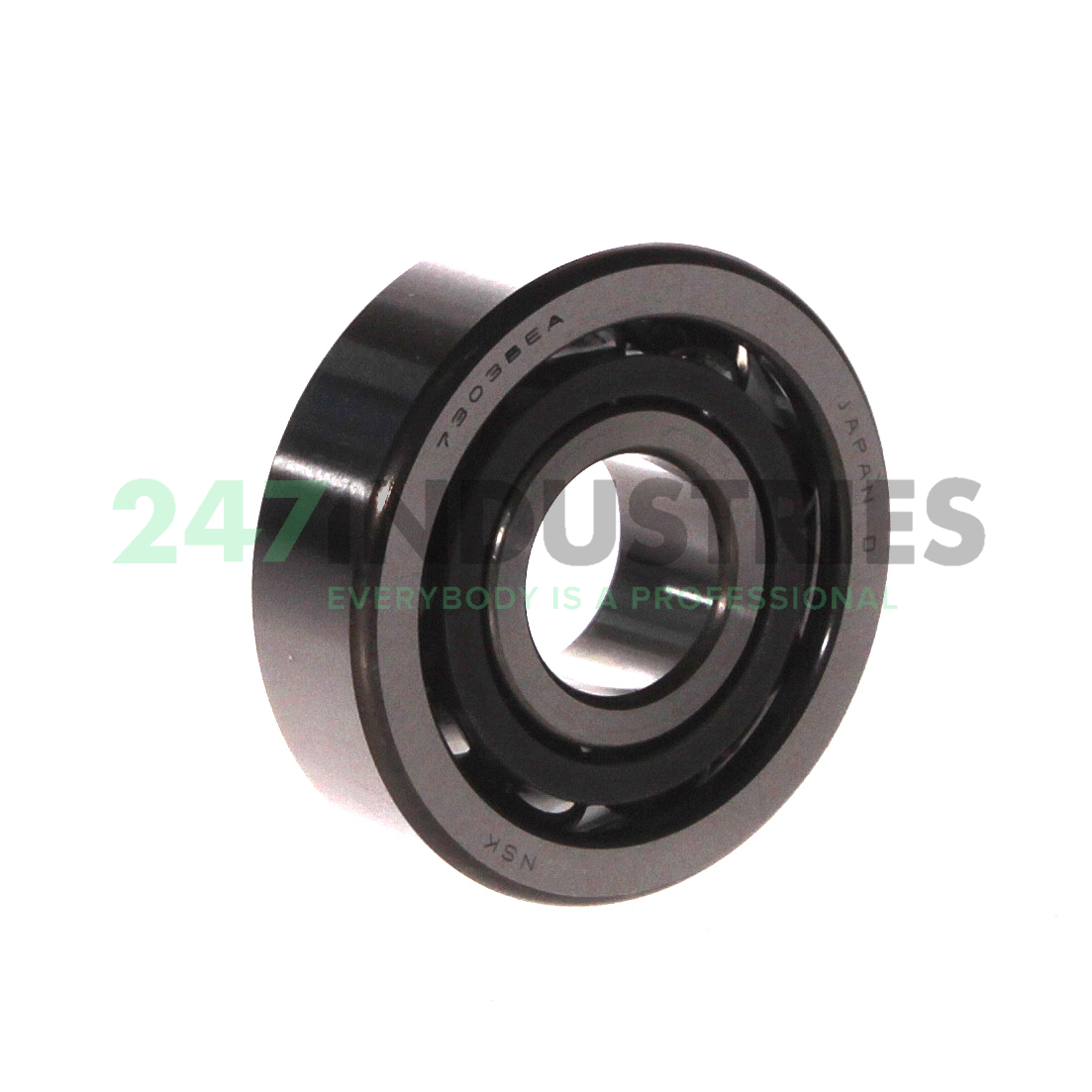

The 7303BEAT85SUCNB NSK Nippon Seiko is a single row angular contact ball bearing with a plastic molded cage and no seal.

Stock
not in stock
Brand NSK
Article number 7303BEAT85SUCNB NSK
Inside diameter 17mm
Outside diameter 47mm
Width 14mm
Product description
Angular Contact Ball Single Row
Read more Show less
Help with this product

Similar to: 7303BEAT85SUCNB NSK

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 17
  2. Outer (D) MM 47
  3. Width (B) MM 14
  4. Inner (d) Inch -
  5. Outer (D) Inch -
  6. Width (B) Inch -

Technical details

  1. Availability 0 pcs
  2. Brand NSK
  3. Item number 7303BEAT85SUCNB NSK
  4. Technical details (BEAT85SUCNB) B=40° Contact Angle. EA=Higher Capacity (Better Than Former Suffix E). T85=Polyamide 46 Resin Cage (Better Than Former Suffix TN). SU=Single Universal. CNB=Normal Clearance.
  5. Category Angular Contact Ball Bearing Single Row
  6. Weight (kg) 0.1130
  7. Manufacturer Part Number (MPN) 7303BEAT85SUCNB
  8. Seal No Seal
  9. Cage Type P - Plastic Molded Cage
  10. Precision Standard Precision
  11. Contact Angle 40 Degrees
  12. Pairing G - Universal Pairing
  13. Axial Internal Clearance / Preload No Preload
  14. Lubrication Standard Lubrication
Show all details Show less
