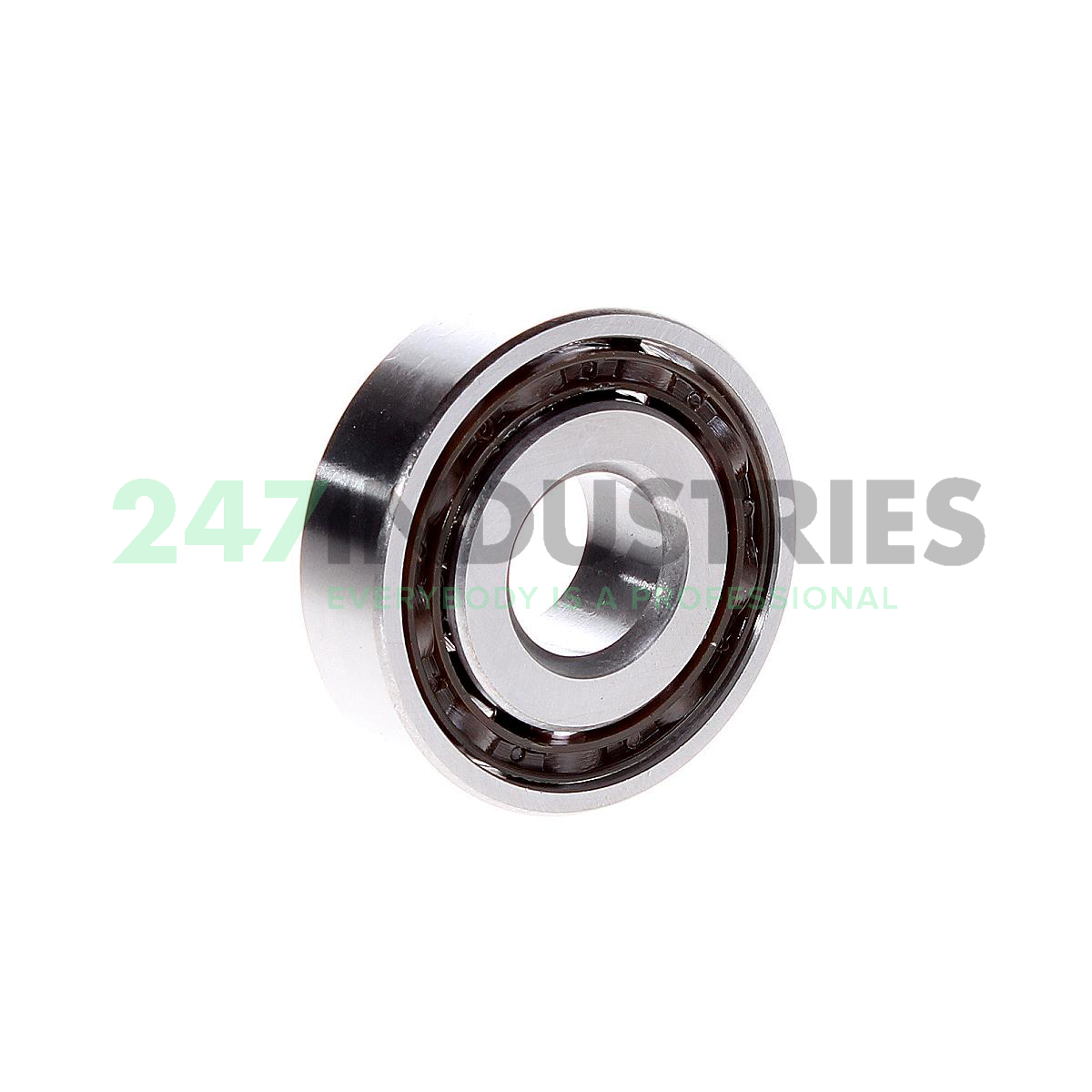

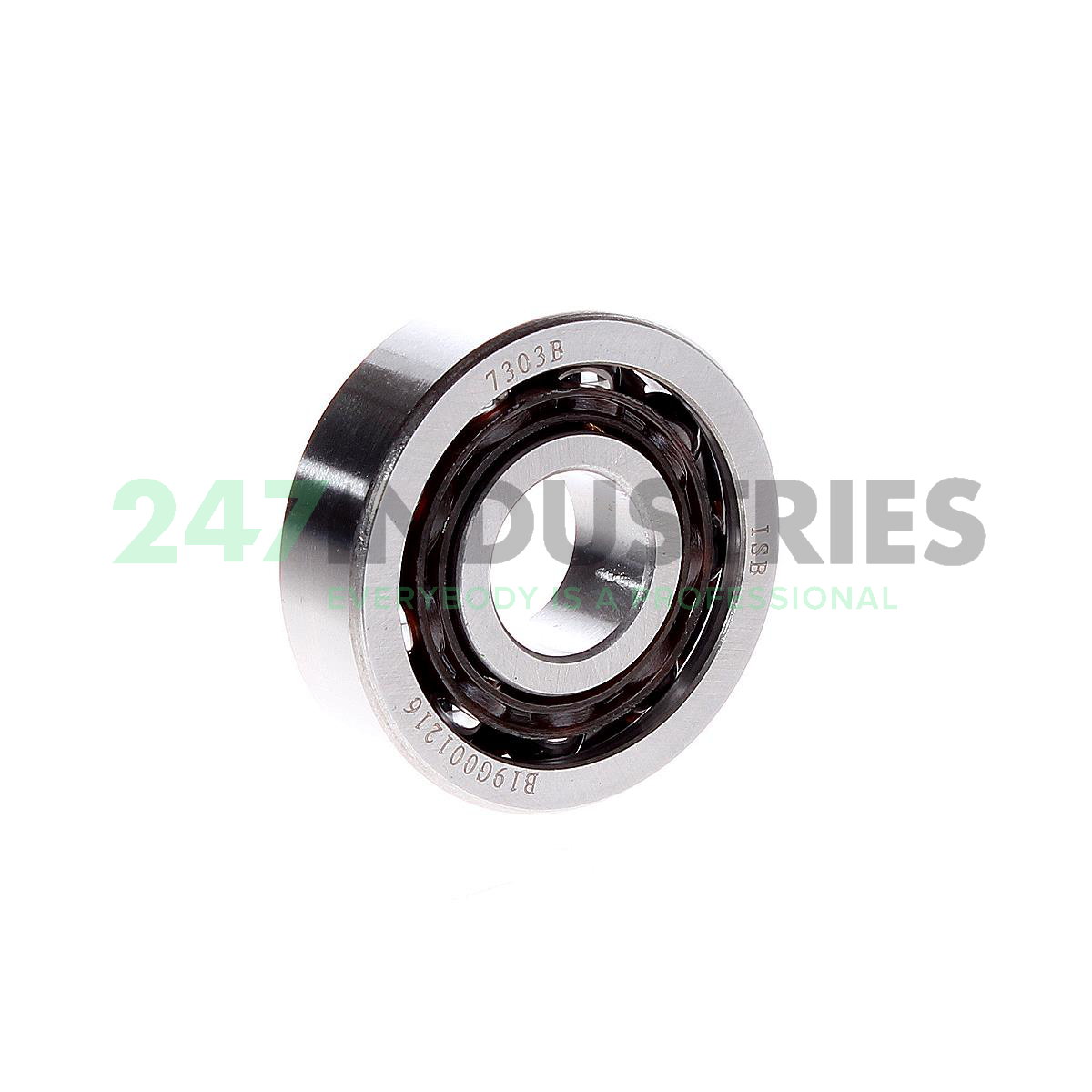

7303B ISB

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. B 40° Contact Angle

Technical details

1. Availability 0 pcs
2. Brand ISB
3. Item number 7303B ISB
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.111

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
