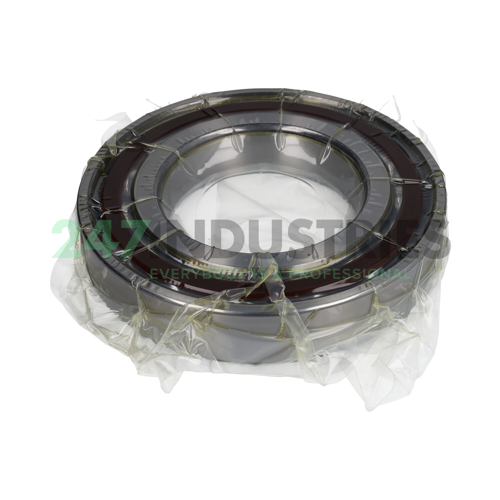

7224CDGA/P4A SKF

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 215
3. Width (B) MM 40
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 8.4646
6. Width (B) Inch 1.5748

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 7224CDGA/P4A SKF
4. Also known as 224HCUL
   2MM224WI CR SUL
   7224 C TR SUL P3
   7224CT1B G/GL P42
   B7224C.T.P4S.UL
   E200/120 7CE1 UL

5. EAN 7316571167954
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 5.4

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
