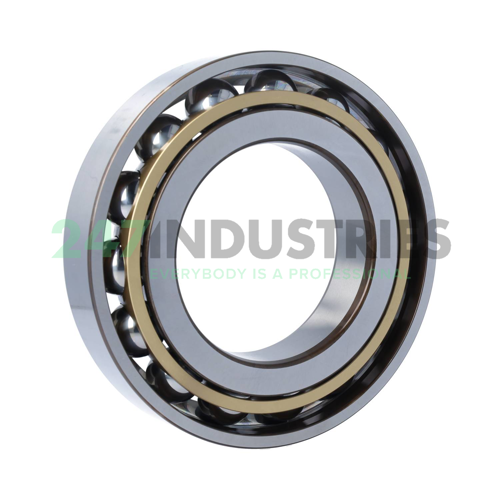

7222BECCM SKF

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 200
3. Width (B) MM 38
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 7.874
6. Width (B) Inch 1.4961

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
2. CC Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have An Axial Internal Clearance Greater Than Normal (CB) Before Mounting
3. M Machined Window-Type Brass Cage, Ball Centered, Different Designs Are Identified By A Figure, e.g. M1

Technical details

1. Availability 3 pcs
2. Brand SKF
3. Item number 7222BECCM SKF
4. EAN 7316571623757
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 5.07

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload CC - Larger than Normal Axial Cl
7. Lubrication Standard Lubrication
