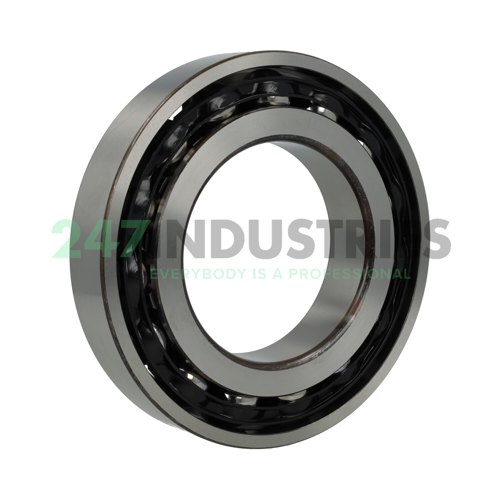

7220B.TVP.P6.UL SLF Fraureuth

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 180
3. Width (B) MM 34
4. Inner (d) Inch 3.937
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.3386

Suffix description

1. B 40° Contact Angle
2. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
3. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)
4. UL Single Bearing, Universal, Light Preload

Technical details

1. Availability 4 pcs
2. Brand SLF Fraureuth
3. Item number 7220B.TVP.P6.UL SLF Fraureuth
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 3.41

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P6 Precision (Higher than Standard)
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
