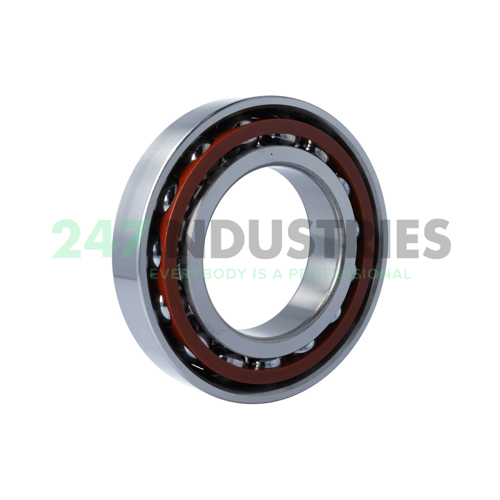

7220ACDGA/P4A SKF

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 180
3. Width (B) MM 34
4. Inner (d) Inch 3.937
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.3386

Suffix description

1. ACD 25° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 7220ACDGA/P4A SKF
4. Also known as 220HEUL
   3MM220WI CR SUL
   7210AD T1 G/GL P42
   7220 A5 TR SUL P3
   B7220E.T.P4S.UL
   E200/100 7CE3 UL

5. EAN 7316570168532
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 3.25

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
