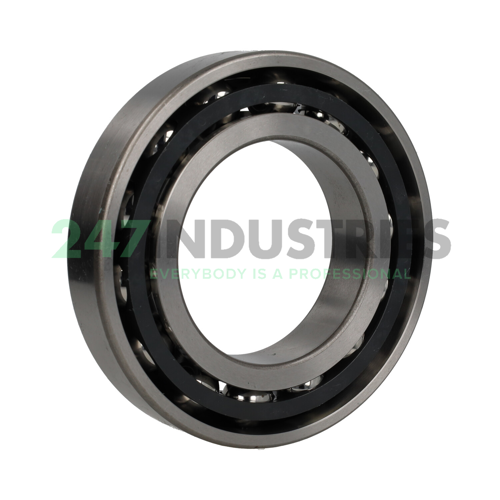

7218C/TPA/P4/SUL Fafnir

All dimensions

1. Inner (d) MM 90,00
2. Outer (D) MM 160,00
3. Width (B) MM 30,00
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.1811

Suffix description

1. C 15° Contact Angle
2. TPA Machined Phenolic Resin Outer Ring Guided
3. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7
4. SUL Single Bearing, Universally Ground, Light Preload

Technical details

1. Availability 1 pc
2. Brand Fafnir
3. Item number 7218C/TPA/P4/SUL Fafnir
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.25

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
