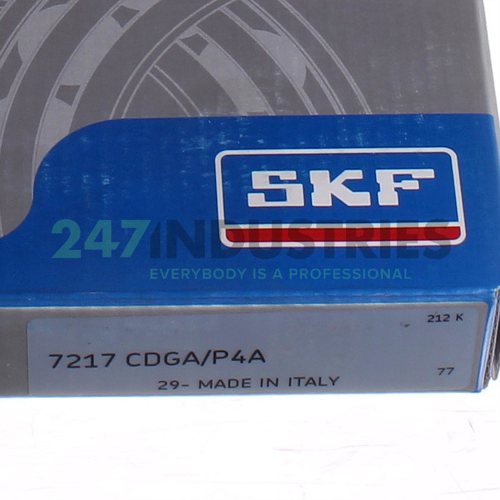

7217CDGA/P4A SKF

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 150
3. Width (B) MM 28
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.1024

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number 7217CDGA/P4A SKF
4. Also known as 217HCUL
   2MM217WI CR SUL
   7217 C TR SUL P3
   7217C T1 G/GL P42
   B7217C.T.P4S.UL
   E285 7CE1 UL

5. EAN 7316571086477
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.8

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
