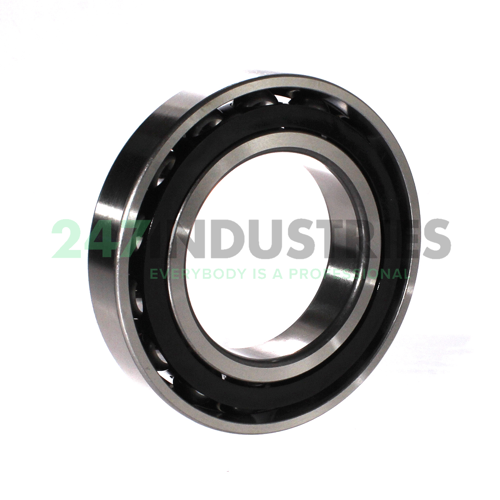

7216CG/GNP4 NTN

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 26
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.0236

Suffix description

1. 7226C Machined High Tensile Brass Cage
2. C 15˚ Contact Angle
3. G Single Bearings, Flush Ground Universal Mounting
4. GN Normal Preload
5. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 7216CG/GNP4 NTN
4. EAN 4547359445350
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.45

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
