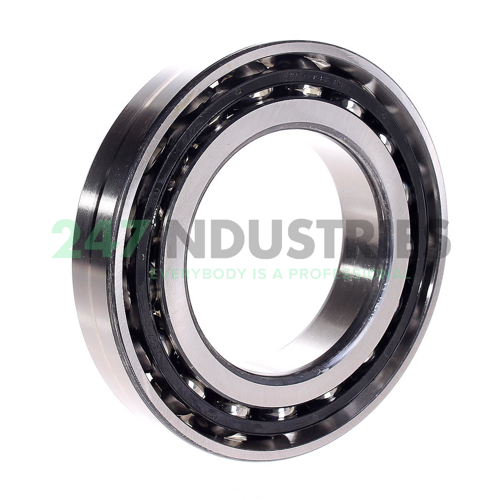

7216-BEGA-TVP NKE

All dimensions

1. Inner (d) MM 80,00
2. Outer (D) MM 140,00
3. Width (B) MM 26,00
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.0236

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design, The Balls Are Larger Than The Balls Used In Suffix B
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

1. Availability 2 pcs
2. Brand NKE
3. Item number 7216-BEGA-TVP NKE
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.43

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
