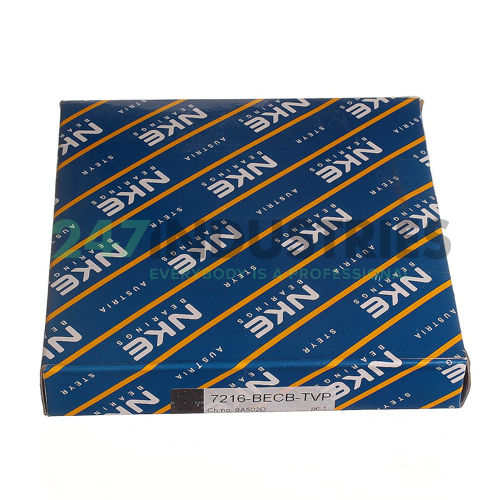

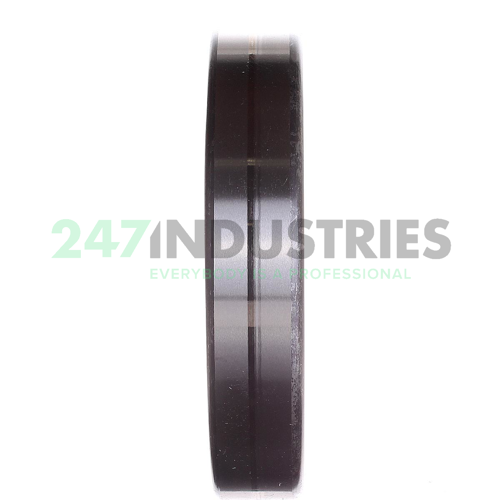

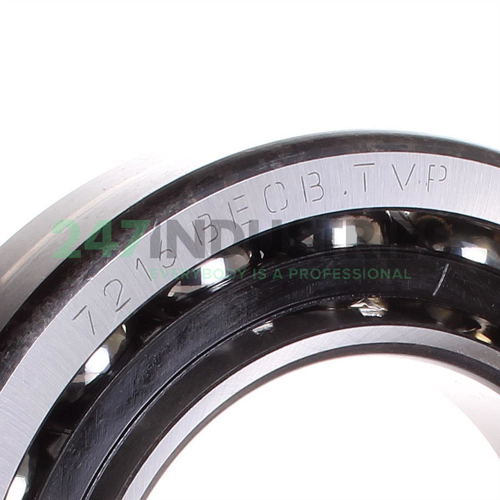

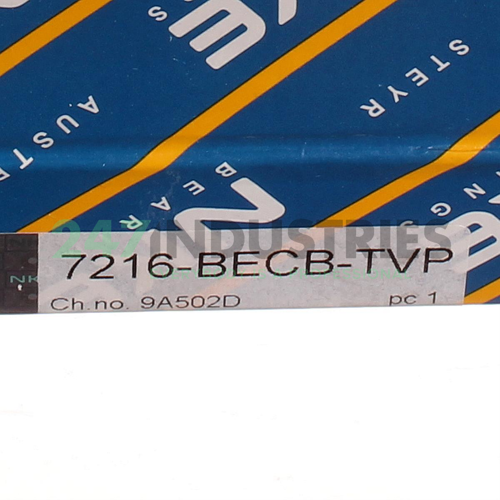

7216-BECB-TVP NKE

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 26
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.0236

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design, The Balls Are Larger Than The Balls Used In Suffix B
2. CB Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Normal Axial Internal Clearance Before Mounting
3. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

1. Availability 19 pcs
2. Brand NKE
3. Item number 7216-BECB-TVP NKE
4. Also known as 7216BECBP
   7216-BTN1/CN
   7216-B-TVP-UB
   7216-B-XL-TVP-UB

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.43

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
