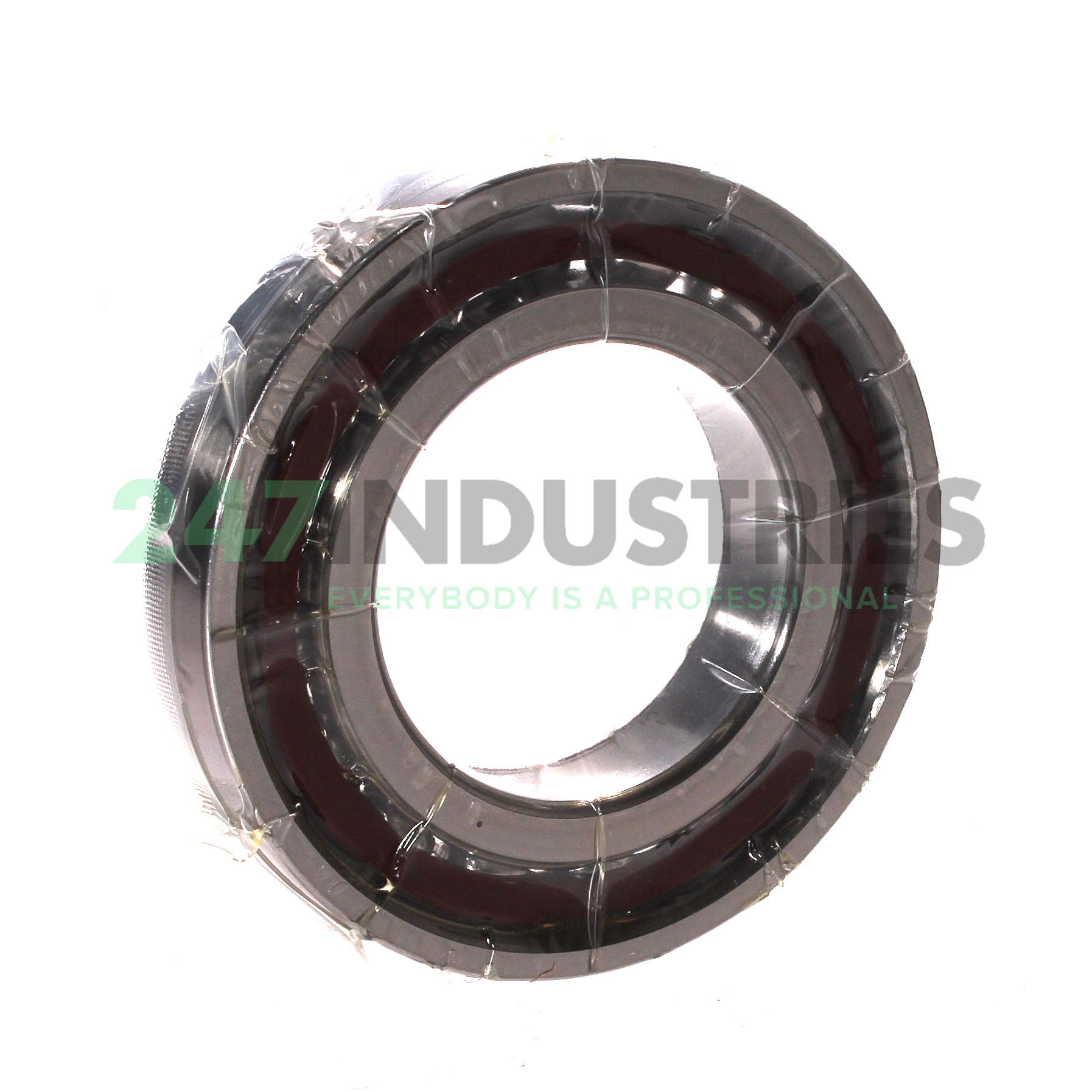

7214C T SUM P4 NSK

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 24

Suffix description

1. C 15° Contact Angle
2. T Machined Laminated Phenolic Cage (Single Row Radial or A. C. Bearings)
3. SUM Single, Universal, Medium Preload
4. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 7214C T SUM P4 NSK
4. Also known as 7214CDGB/P4A

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.1

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
