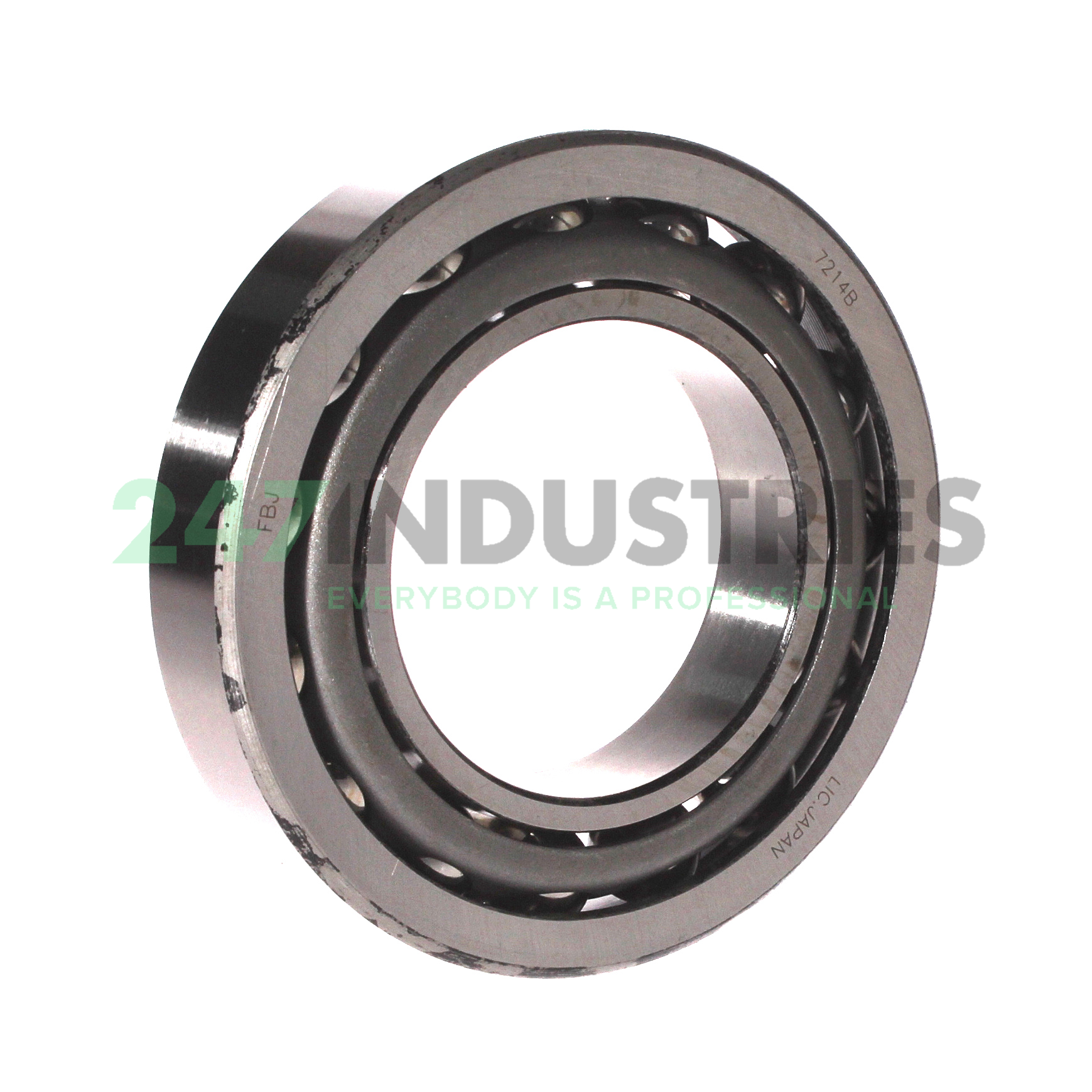

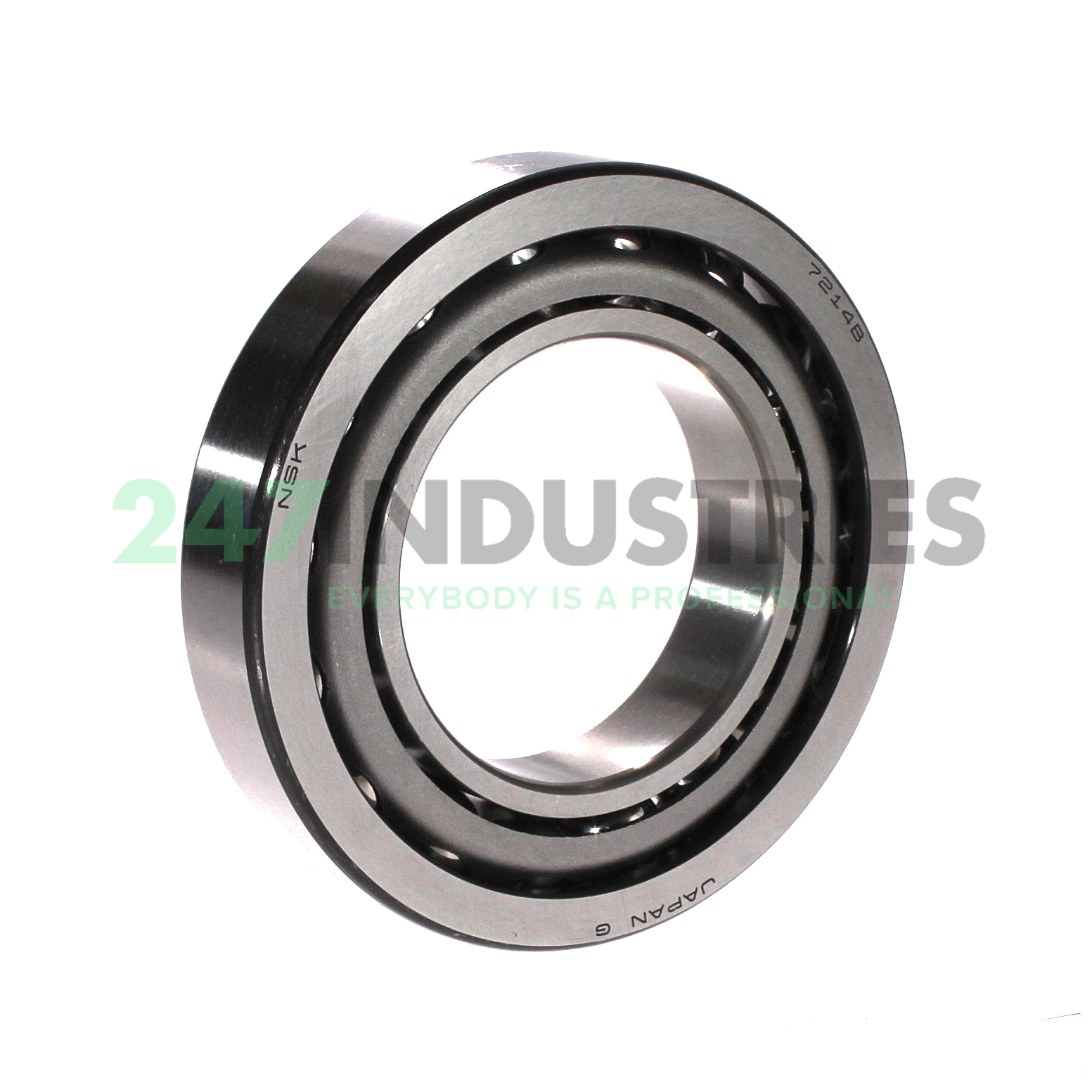

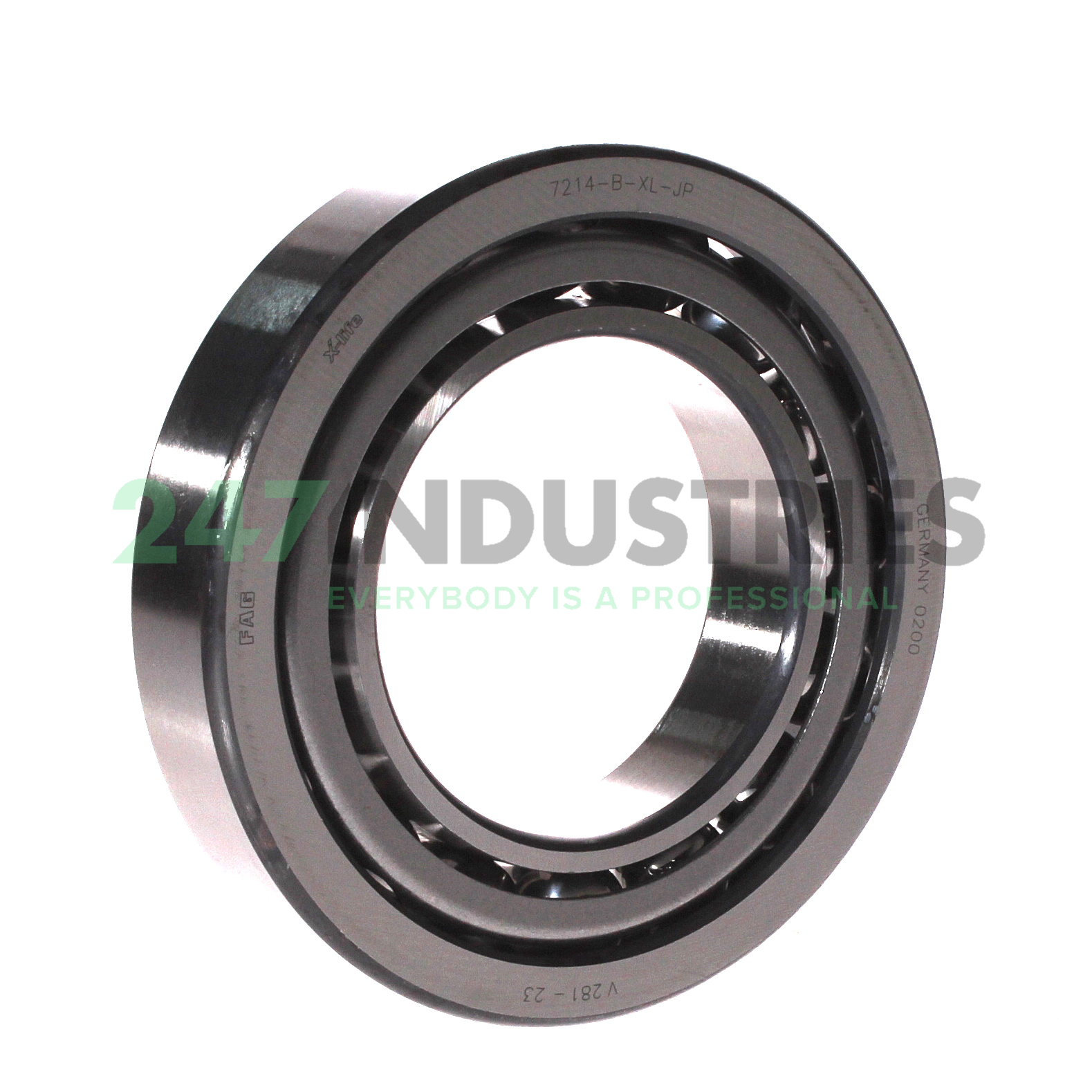

7214B.J Steyr

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 125,00
3. Width (B) MM 24,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449

Suffix description

1. B 40° Contact Angle
2. J Pressed Window-Type Steel Cage, Ball Centered

Technical details

1. Availability 0 pcs
2. Brand Steyr
3. Item number 7214B.J Steyr
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.092

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
