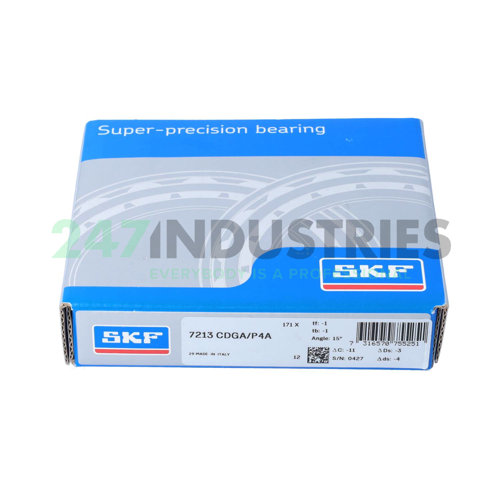

7213CDGA/P4A SKF

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 120
3. Width (B) MM 23
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 4.7244
6. Width (B) Inch 0.9055

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 7213CDGA/P4A SKF
4. Also known as 213HCUL
   2MM213WI CR SUL
   7213 C TR SUL P3
   7213C T SUL P4
   7213C T1 G/GL P42
   B7213C.T.P4S.UL
   E265 7CE1 UL

5. EAN 7316570755251
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
