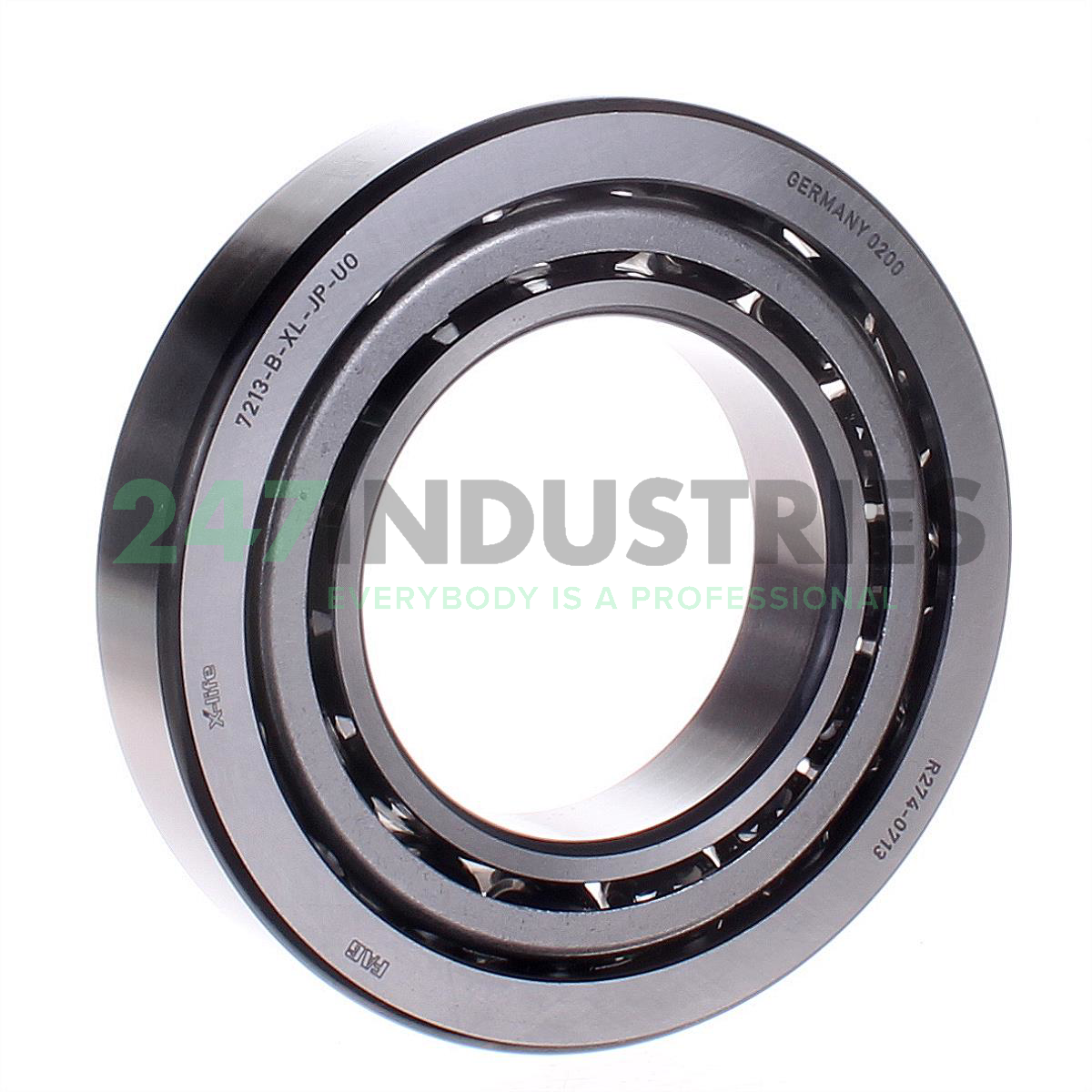

7213-B-JP-UO FAG

Single row angular contact ball bearing in UO design

Stock
not in stock
Brand FAG
Article number 7213-B-JP-UO FAG
Product description

The 7213-B-JP-UO FAG is a single row angular contact ball bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact ball bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

The 7213-B-JP-UO FAG is a universal angular contact ball bearing. Universal angular contact ball bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. A pair of UO bearings is clearance-free in an X or O arrangement.

Help with this product

Downloads and links

Similar to: 7213-B-JP-UO FAG

Product
Dimensions/Properties
Stock
Price ex VAT
7213-B-XL-JP-UO FAG
7213-B-XL-JP-UO FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)
106,69 ex VAT
7213-B-XL-JP-UO FAG
Guaranteed same day shipment on orders placed before 18:00h (CET)

16 pcs
106,69 ex VAT

Product specifications

Suffix description

  1. B 40° Contact Angle
  2. JP Pressed Steel Cage, Rolling Element Guided
  3. UO Universal Mounting, With O And X Configurations The Bearing Pair Has Zero Clearance

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number 7213-B-JP-UO FAG
  4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 1.02

Product Properties

  1. Seal No Seal
  2. Cage Type S - Steel or Standard Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing G - Universal Pairing
  6. Axial Internal Clearance / Preload UO - Zero Clearance
  7. Lubrication Standard Lubrication
