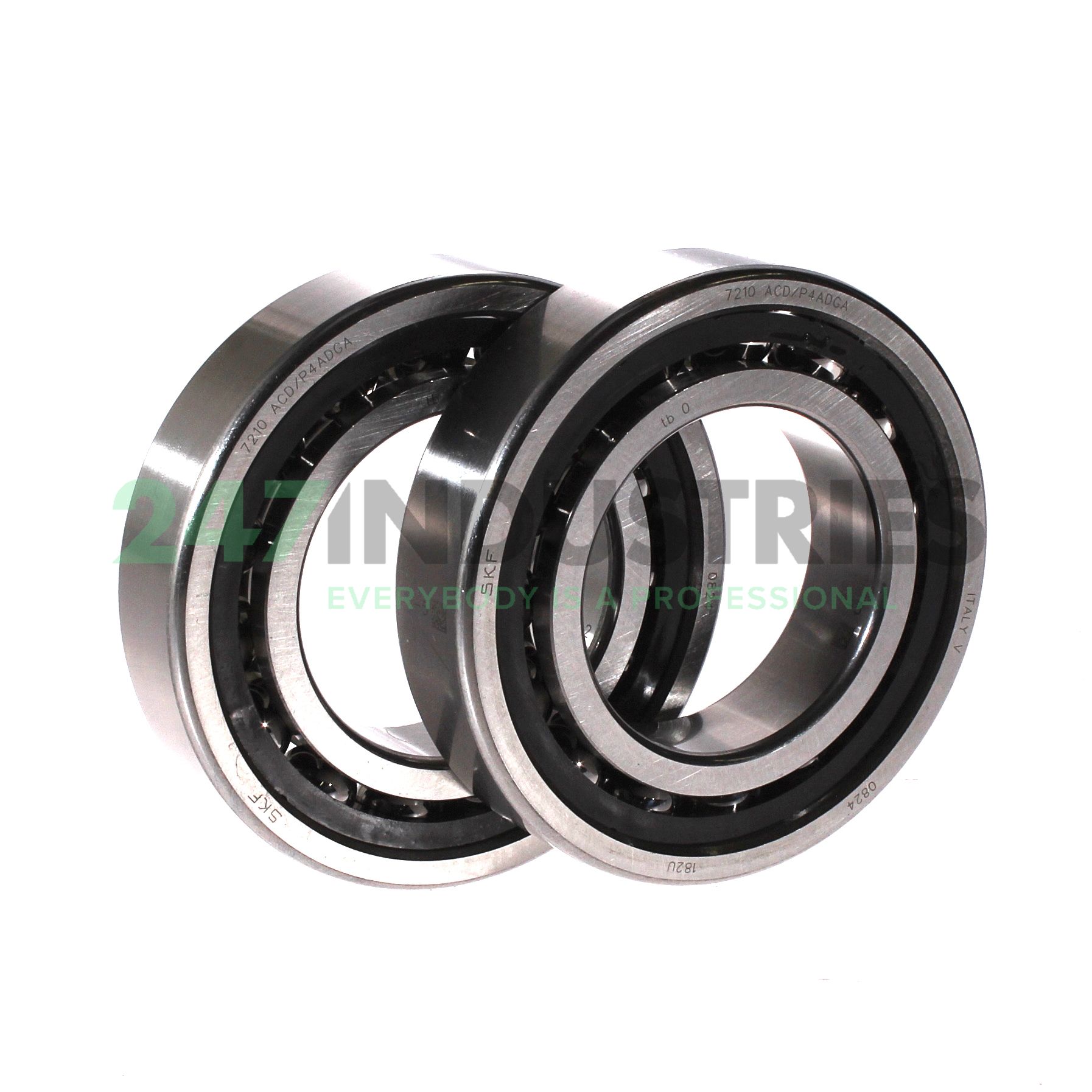

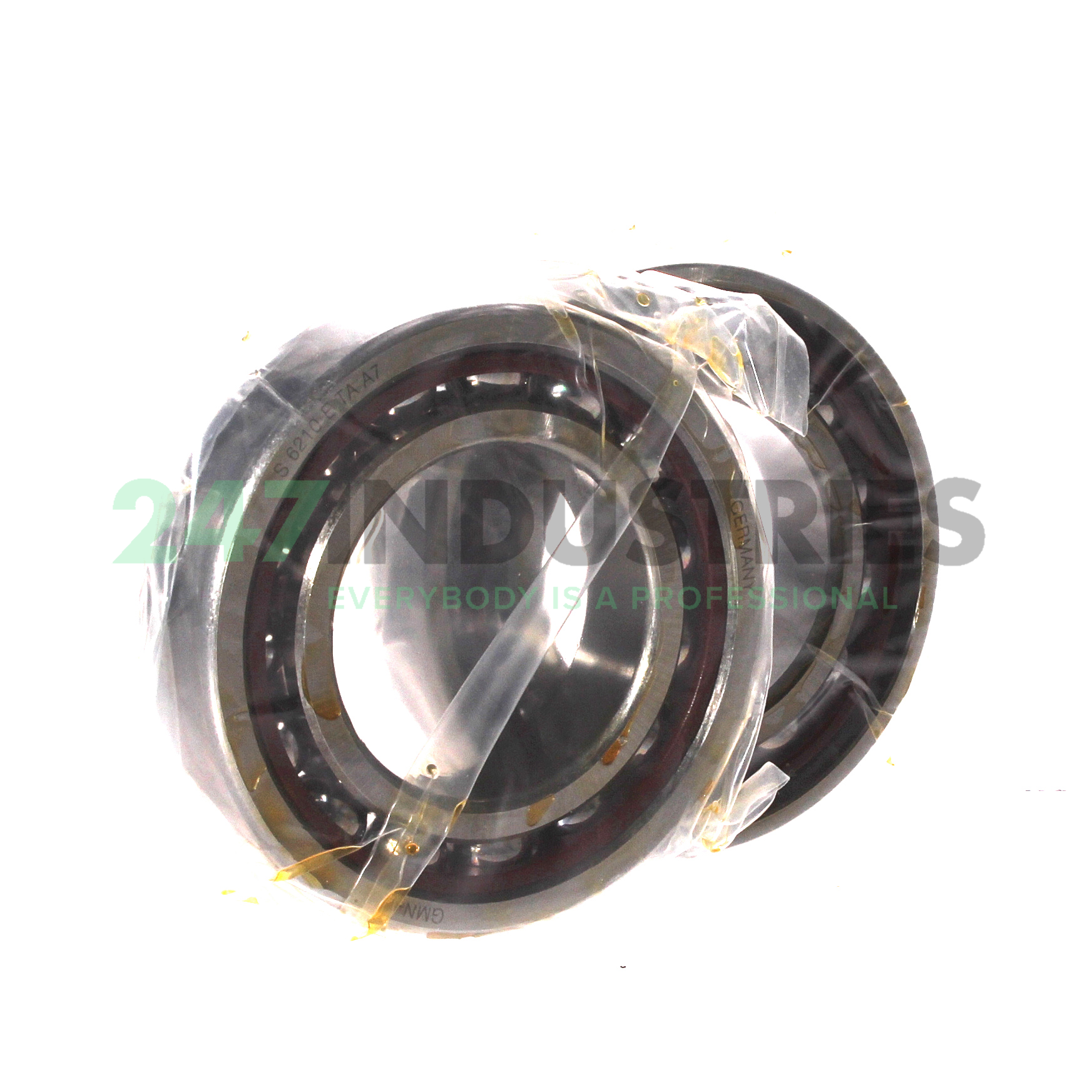

7210E T DUL P4 RHP

All dimensions

1. Inner (d) MM 50,00
2. Outer (D) MM 90,00
3. Width (B) MM 40,00
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.5748

Suffix description

1. E 25° Contact Angle
2. T Machined Laminated Phenolic Cage (Single Row Radial or A. C. Bearings)
3. DUL Set Of 2 Universal Bearings, Light Preload
4. P4 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-ABEC.7

Technical details

1. Availability 0 pcs
2. Brand RHP
3. Item number 7210E T DUL P4 RHP
4. Also known as 7210ACD/P4ADGA

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.92

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
