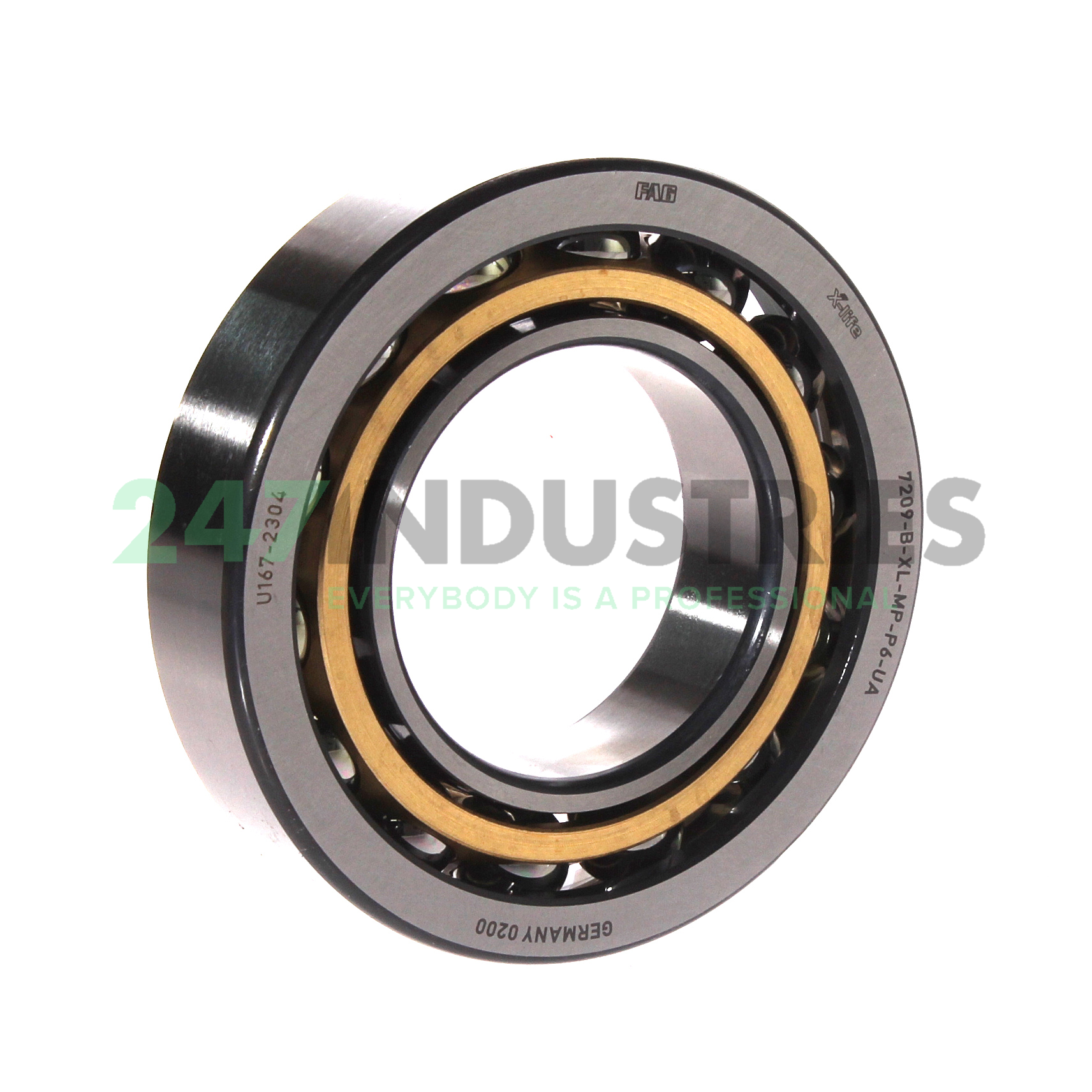

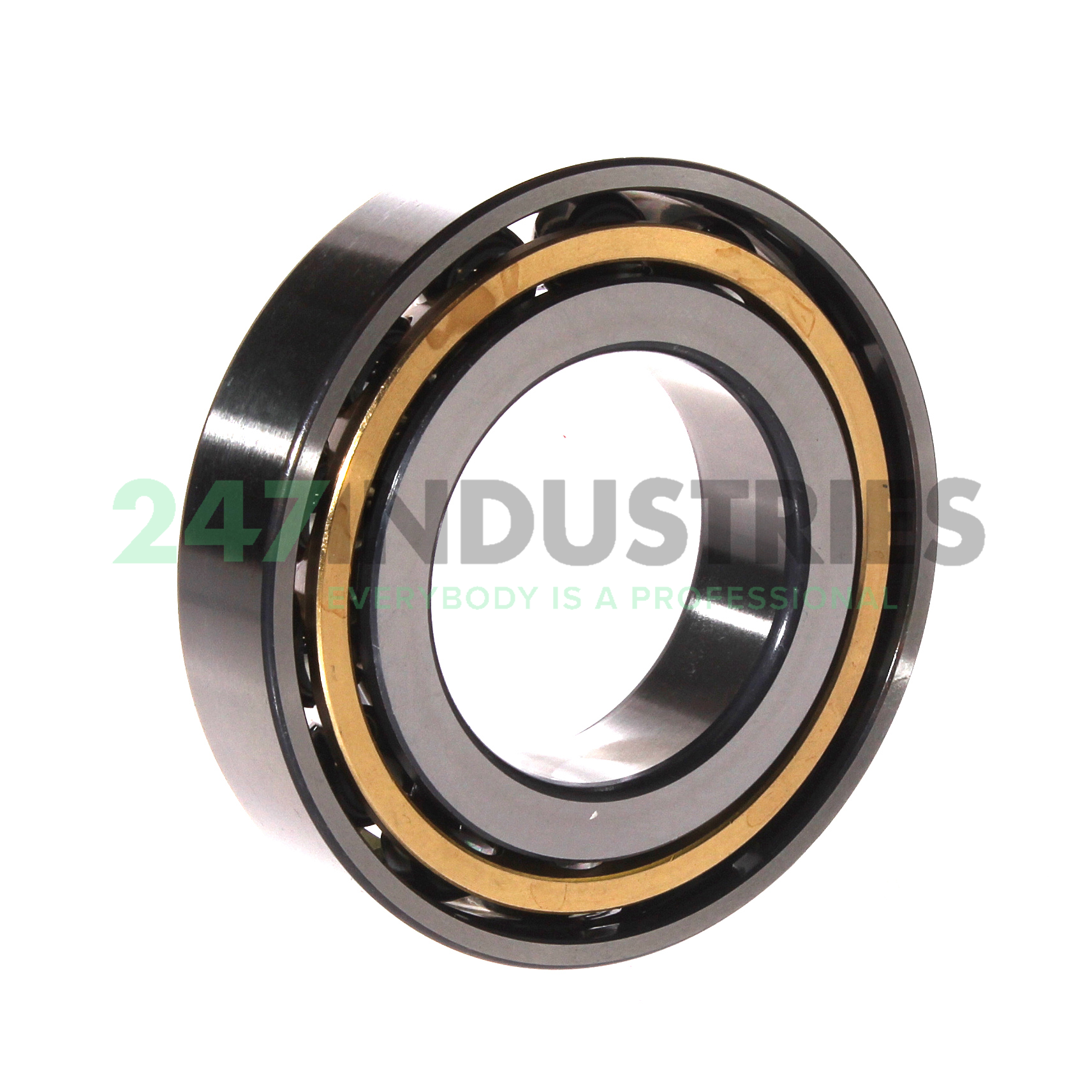

7209-B-XL-MP-P6-UA FAG

89,34 ex VAT
€ 108,10 incl. VAT
€ 108,10 incl. VAT
89,34 ex VAT
Temporarily sold out
Worldwide shipping from The Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

7209-B-XL-MP-P6-UA FAG

Stock
not in stock
Brand FAG
Article number 7209-B-XL-MP-P6-UA FAG
Inside diameter 45,00mm
Outside diameter 85,00mm
Width 19,00mm
Product description
Read more Show less
Help with this product

Downloads

Similar to: 7209-B-XL-MP-P6-UA FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45,00
  2. Outer (D) MM 85,00
  3. Width (B) MM 19,00

Suffix description

  1. B 40° Contact Angle
  2. XL X-Life
  3. MP Machined Brass Cage, Window Type, Rolling Element Riding
  4. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)
  5. UA Universal Mounting, With O And X Configurations The Bearing Pair Has Small Axial Clearance

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number 7209-B-XL-MP-P6-UA FAG
  4. Also known as 7209-B-MP-P6-UA
  5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.43

Product Properties

  1. Seal No Seal
  2. Cage Type M - Brass Cage
  3. Precision P6 Precision (Higher than Standard)
  4. Contact Angle 40 degrees
  5. Pairing G - Universal Pairing
  6. Axial Internal Clearance / Preload UA - Universal design for fitting in pairs, bearing pair has slight axial internal clearance in O and X arrangements
  7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 27000
  2. Radial Dynamic Load Rating Cr (N) 40000
  3. ECLASS number 23-05-08-03
  4. ECLASS2 number 23-05-08-03

Downloads

  1. Link to manufacturer Link to manufacturer
Show all details Show less

Order this product

7209-B-XL-MP-P6-UA FAG

7209-B-XL-MP-P6-UA FAG

not in stock
89,34 ex VAT
89,34 ex VAT

7209-B-XL-MP-P6-UA FAG

not in stock
