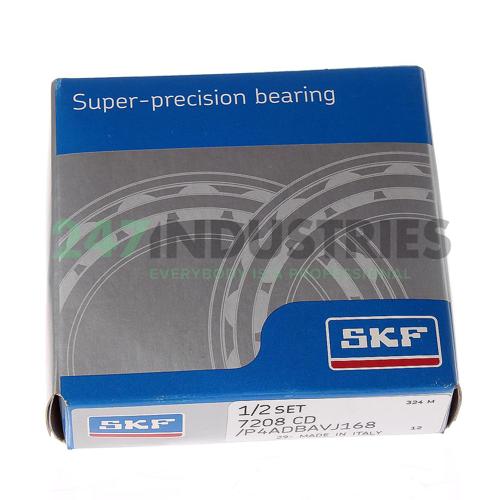

7208CD/P4ADBAVJ168 SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 36
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.4173

Suffix description

1. CD 15° Contact Angle
2. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
3. DBA Two Single Row Deep Groove Ball Bearings, Single Row Angular Contact Ball Bearings Or Single Row Tapered Roller Bearings Matched For Mounting In A Back-To-Back Arrangement, Light Preload
4. VJ168 Unknown (V Combined With A Second Letter And Followed By A Three Or Four-Figure Number Identifies Variants Of The Standard Design, Which Cannot Be Identified By Generally Applicable Suffixes; The Second Letter Identifies A Variant Group)

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number 7208CD/P4ADBAVJ168 SKF
4. EAN 7316575955311
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.72

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
