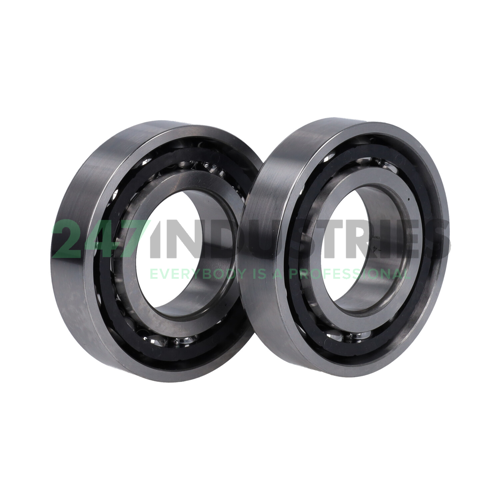

7207CD/P4ADGC SKF

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 34
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.3386

Suffix description

1. CD 15° Contact Angle
2. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
3. DGC Two Single Row Angular Contact Ball Bearings For Universal Pairing, I.E. Paired For Mounting In A Back-To-Back, Face-To-Face Or Tandem Arrangement, Heavy Preload

Technical details

1. Availability 7 pcs
2. Brand SKF
3. Item number 7207CD/P4ADGC SKF
4. Also known as 2MM207WICRDUH

5. EAN 7316577305664
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.56

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DH - 2 Univ Bearings High Preload
7. Lubrication Standard Lubrication
