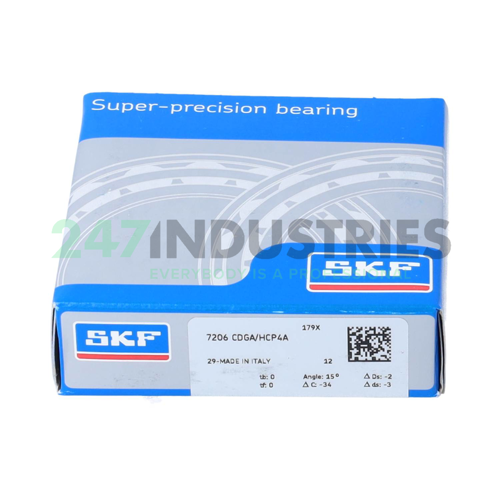

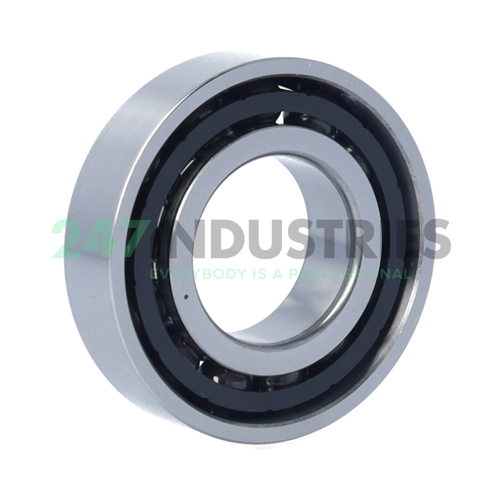

7206CDGA/HCP4A SKF

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number 7206CDGA/HCP4A SKF
4. Also known as 2MMC206WI CR SUL
   5S-7206C T1 G/GL P42
   7206 C SN24 TR SUL P3
   C206HCUL
   E230/NS 7CE1 UL
   HCB7206C.T.P4S.UL

5. EAN 7316571822235
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.17

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
