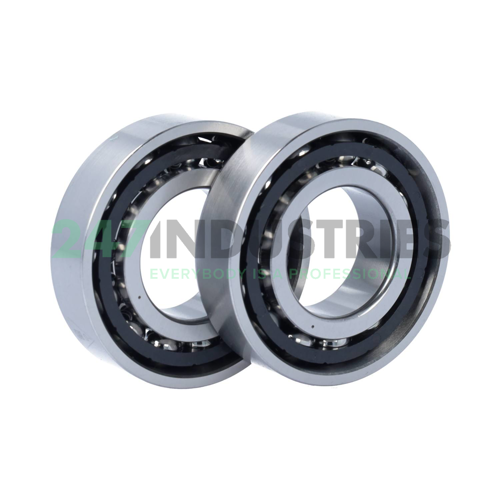

7206CD/P4ADGB SKF

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 62,00
3. Width (B) MM 32,00

Suffix description

1. CD 15° Contact Angle
2. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
3. DGB Two Single Row Angular Contact Ball Bearings For Universal Pairing, I.E. Paired For Mounting In A Back-To-Back, Face-To-Face Or Tandem Arrangement, Moderate Preload

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 7206CD/P4ADGB SKF
4. EAN 7316576626135
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.38

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DM - 2 Univ Bearings Medium Pre
7. Lubrication Standard Lubrication
