7206BE-2RZP SKF

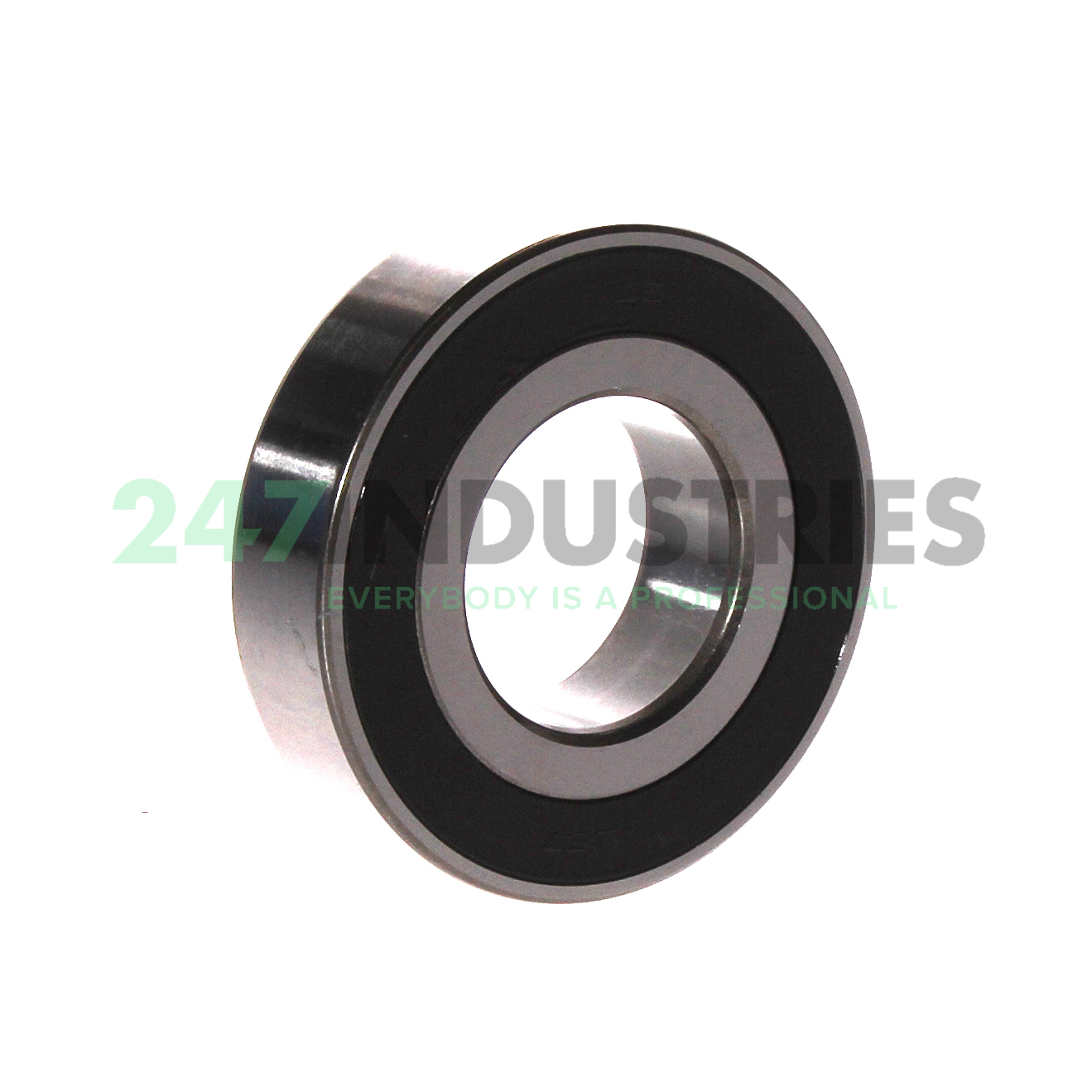

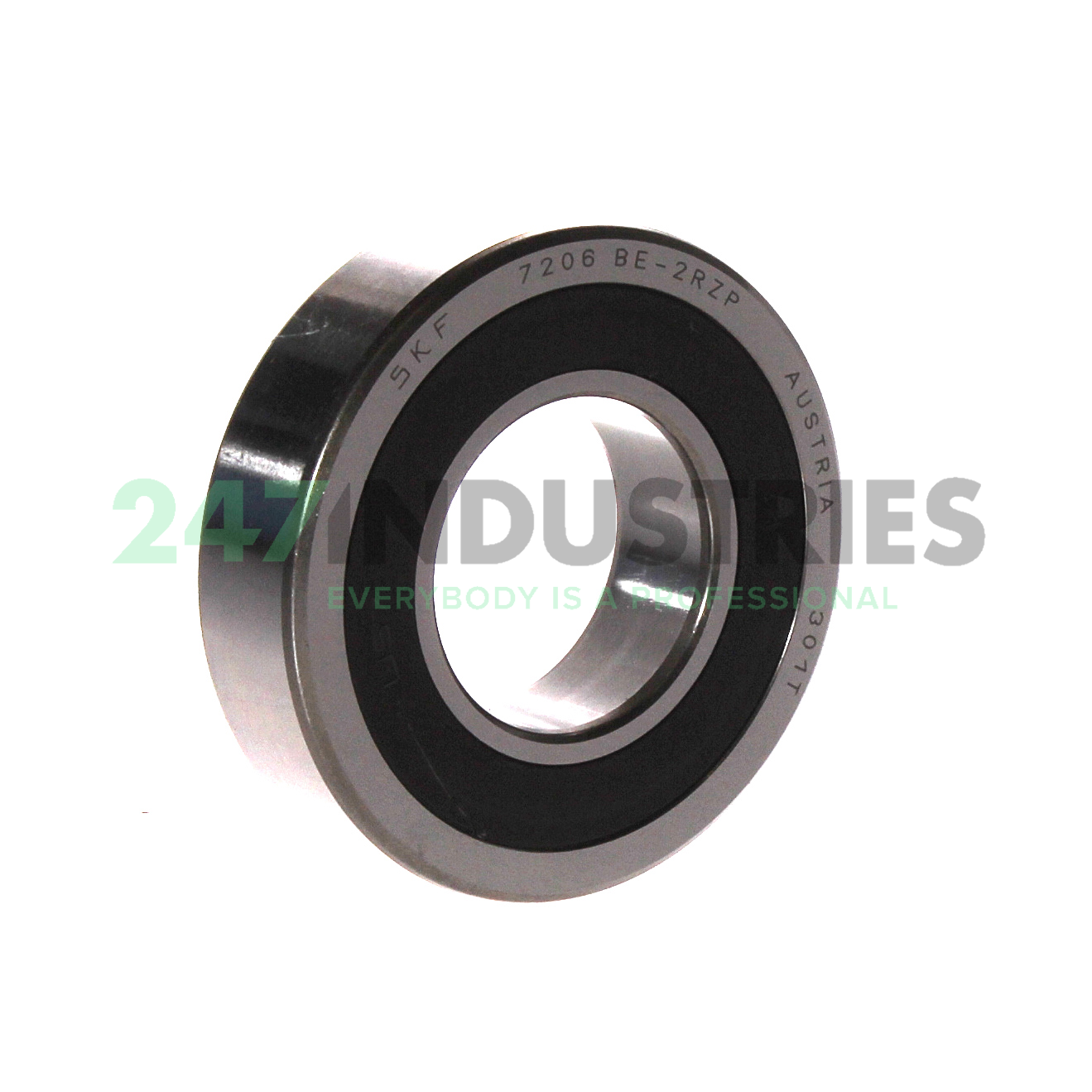

Single row angular contact ball bearing

Stock
10 pcs in stock and ready for shipment
Brand SKF
Article number 7206BE-2RZP SKF
Inside diameter 30mm
Outside diameter 62mm
Width 16mm
Product description

The 7206BE-2RZP SKF is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 7206BE-2RZP SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 62
  3. Width (B) MM 16
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 0.6299

Suffix description

  1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
  2. 2RZ Ball Bearing To DIN 623, Two Low Friction (Gap) Seals
  3. P Injection Moulded Window-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered

Technical details

  1. Availability 10 pcs
  2. Brand SKF
  3. Item number 7206BE-2RZP SKF
  4. EAN 7316575924409
  5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.188

Product Properties

  1. Seal 2RZ - Rubber and Steel Seal
  2. Cage Type P - Plastic Molded Cage
  3. Precision Standard Precision
  4. Contact Angle 40 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication
