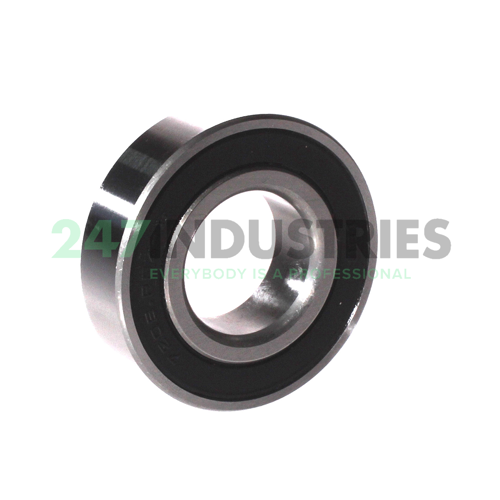

7205.C.T.2RSZ.P4A.UL IBC Bearings

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. C 15° Contact Angle
2. T Cage Of Machined Phenolic Resin, Located On Rolling Elements
3. 2RSZ Non Contact Seal At Both Sides Of The Bearing
4. P4A Bearing With Extreme High Running Accuracy (Abec9) And Form Tolerance (Abec7)
5. UL Single Bearing, Universal, Light Preload

Technical details

1. Availability 0 pcs
2. Brand IBC Bearings
3. Item number 7205.C.T.2RSZ.P4A.UL IBC Bearings
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Seal 2RU - Two Seals / Non Contact Type
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
