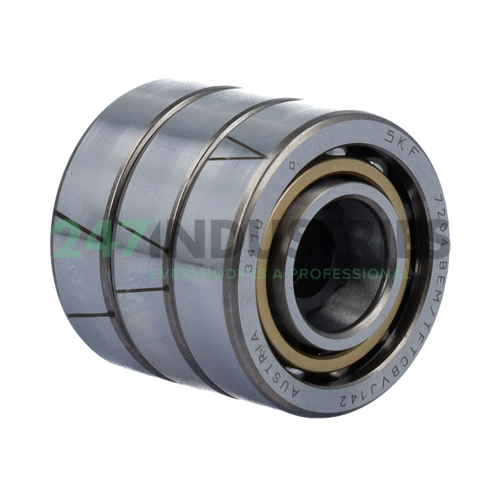

7204BEM/TFTCBVJ142 SKF

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 56
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 2.2047

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
2. M Machined Window-Type Brass Cage, Ball Centered, Different Designs Are Identified By A Figure, e.g. M1
3. TFT Four Bearings Arranged Tandem Face-To-Face >><<
4. CB Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Normal Axial Internal Clearance Before Mounting. VJ(107)=V Combined With A Second Letter, Identifies A Variant Group, And Followed By A Three- Or Four-Figure Number Denotes Variants Not Covered By "Standard" Designation Suffixes

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 7204BEM/TFTCBVJ142 SKF
4. EAN 7316571441139
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.408

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing TFT - X- And Tandem Arrangement, 3
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
