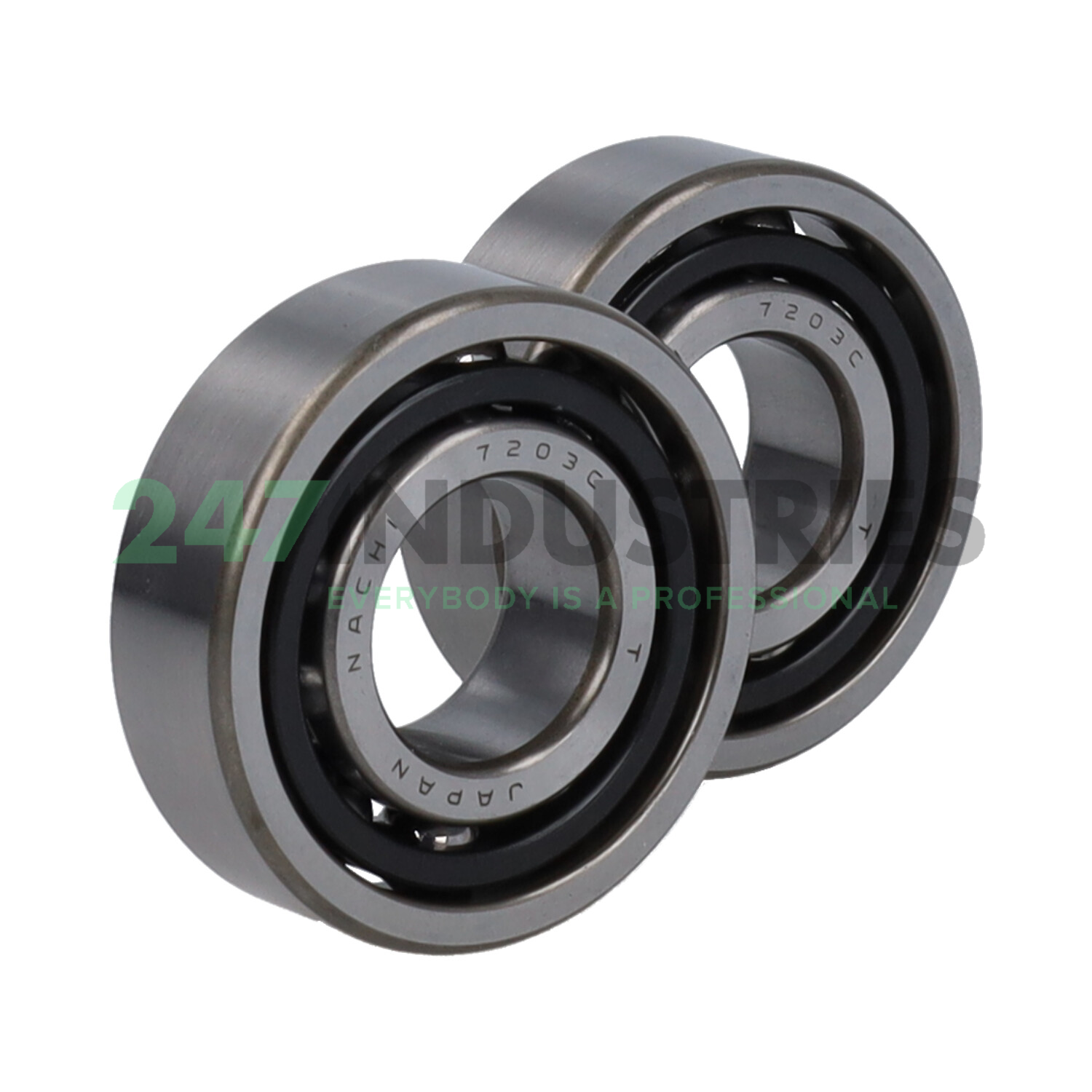

7203CY DU GL P4 Nachi

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 24
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.9449

Suffix description

1. C 15° Contact Angle
2. Y Polyamide Cage
3. DU Flush Ground (Duplex)
4. GL Light Preload
5. P4 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-Abec7

Technical details

1. Availability 90 pcs
2. Brand Nachi
3. Item number 7203CY DU GL P4 Nachi
4. Also known as 7203CD/P4ADGA

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.124

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
