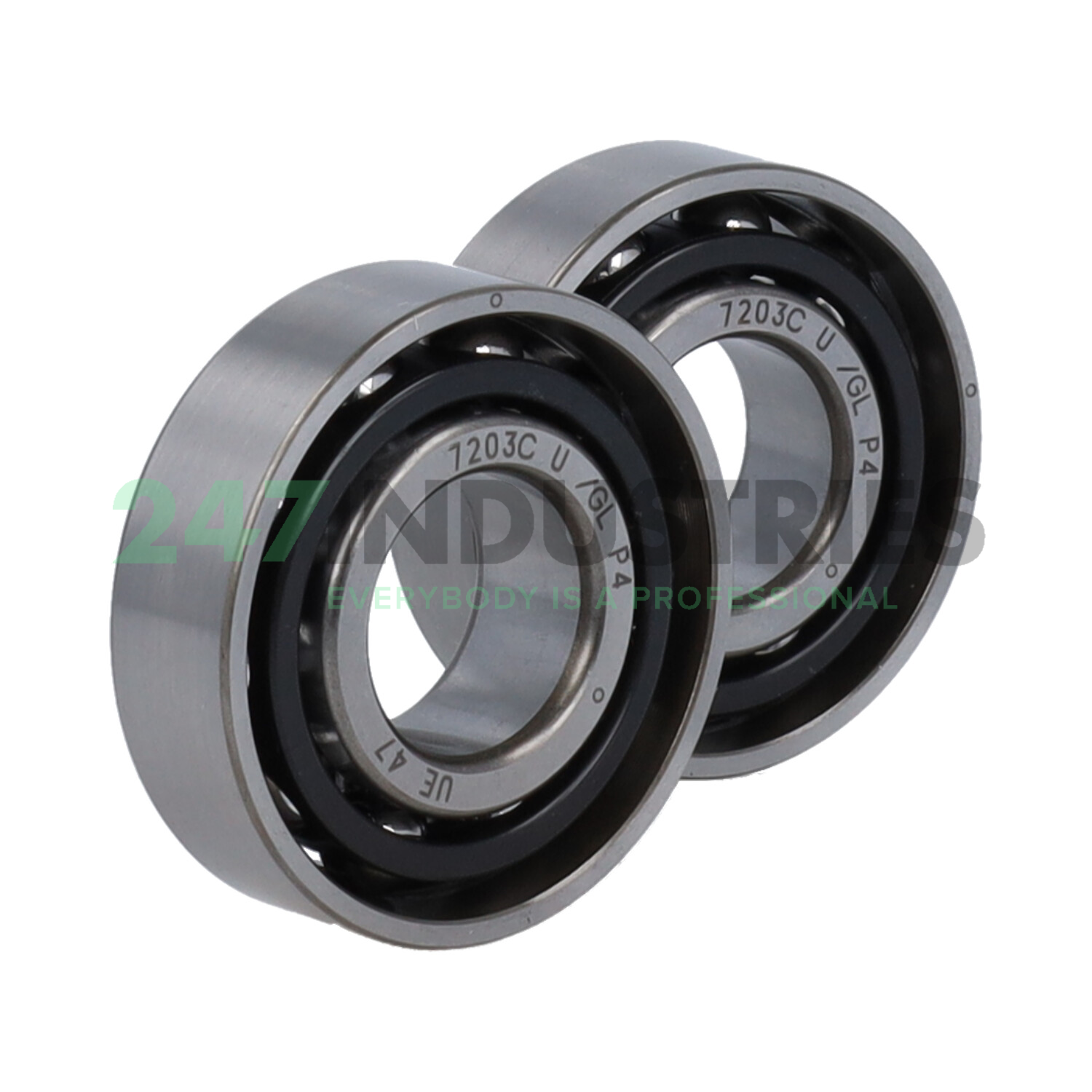

7203C/P4DGA SKF

All dimensions

1. Inner (d) MM 17,00
2. Outer (D) MM 40,00
3. Width (B) MM 24,00
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.9449

Suffix description

1. C 15° Contact Angle
2. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7
3. DGA Two Single Row Angular Contact Ball Bearings For Universal Pairing, I.e. Paired For Mounting In A Back-To-Back, Face-To-Face Or Tandem Arrangement, Light Preload

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number 7203C/P4DGA SKF
4. Also known as 7203C T DUL P4
   7203CD/P4ADGA

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.124

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
