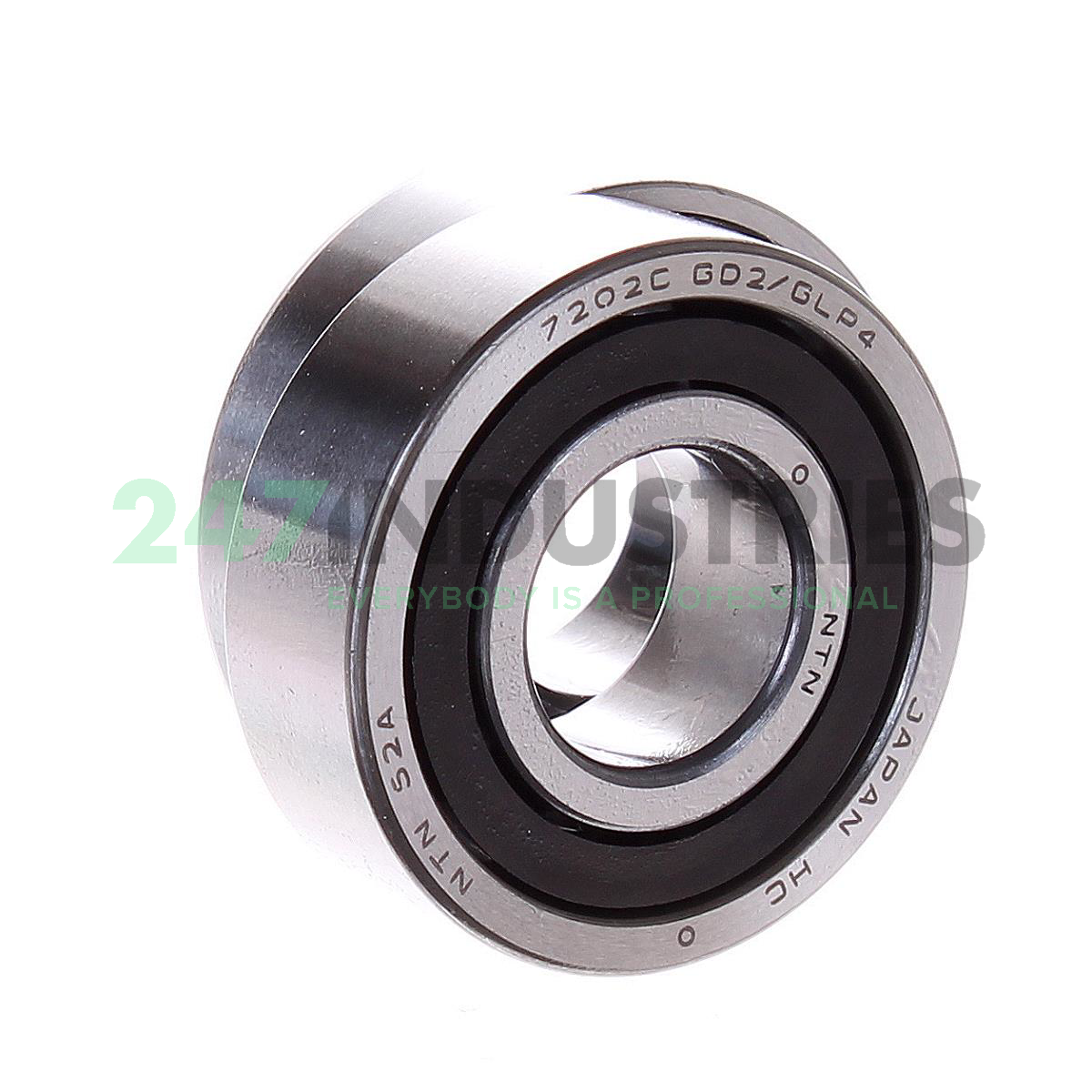

7202CGD2/GLP4 NTN

All dimensions

1. Inner (d) MM 15,00
2. Outer (D) MM 35,00
3. Width (B) MM 22,00
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.3780
6. Width (B) Inch 0.8661

Suffix description

1. 7226C Machined High Tensile Brass Cage
2. C 15˚ Contact Angle
3. G Single Bearings, Flush Ground Universal Mounting
4. D2 Universal Flush Ground Pair
5. GL Light Preload
6. P4 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-ABEC.7

Technical details

1. Availability 10 pcs
2. Brand NTN
3. Item number 7202CGD2/GLP4 NTN
4. Also known as 2MM202WIDUL

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.086

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
