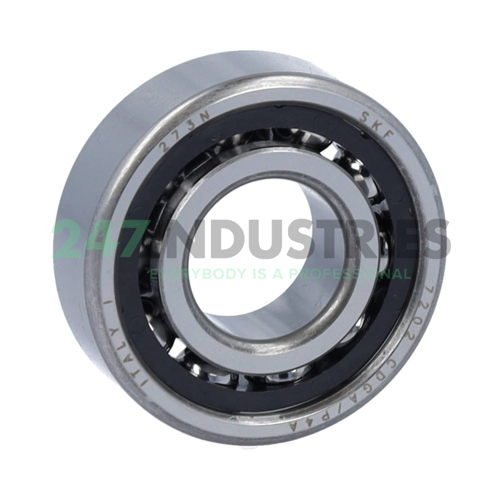

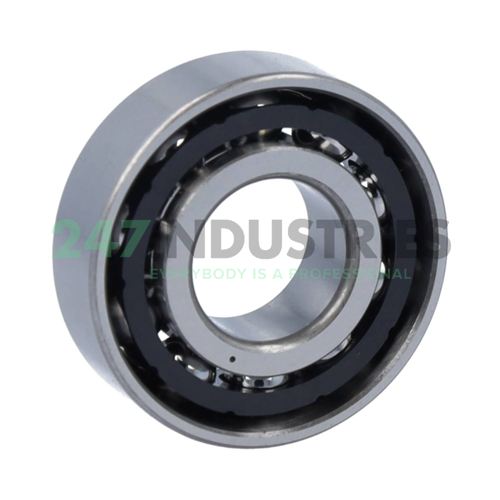

7202CDGA/P4A SKF

All dimensions

1. Inner (d) MM 15,00
2. Outer (D) MM 35,00
3. Width (B) MM 11,00
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.3780
6. Width (B) Inch 0.4331

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 52 pcs
2. Brand SKF
3. Item number 7202CDGA/P4A SKF
4. Also known as 202HCUL
   2MM202WI CR SUL
   7202 C TR SUL P3
   7202C G1 U J74
   7202C T1 G/GL P42
   B7202C.T.P4S.UL
   E215 7CE1 UL

5. EAN 7316570582338
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.043

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
