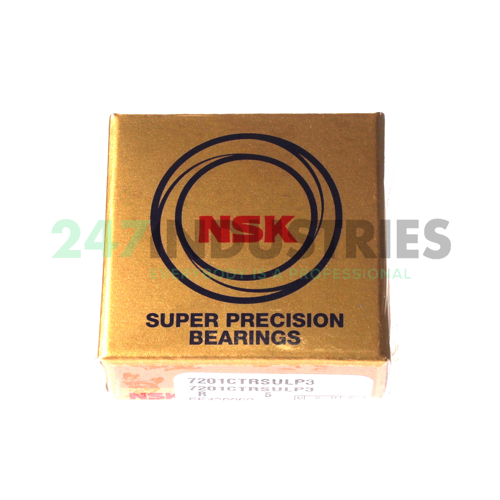

7201C TR SUL P3 NSK

All dimensions

1. Inner (d) MM 12,00
2. Outer (D) MM 32,00
3. Width (B) MM 10,00
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3937

Suffix description

1. C 15° Contact Angle
2. TR Outer Ring Guided Phenolic Cage
3. SUL Single Ball Bearing, Angular Contact, Super Precision, Single Bearing Ground For Universal Mounting, Light Preload
4. P3 Dimensional Accuracy P4, Running Accuracy P2

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 7201C TR SUL P3 NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.037

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision Dim. Acc. P4, Run. Acc. P2
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
