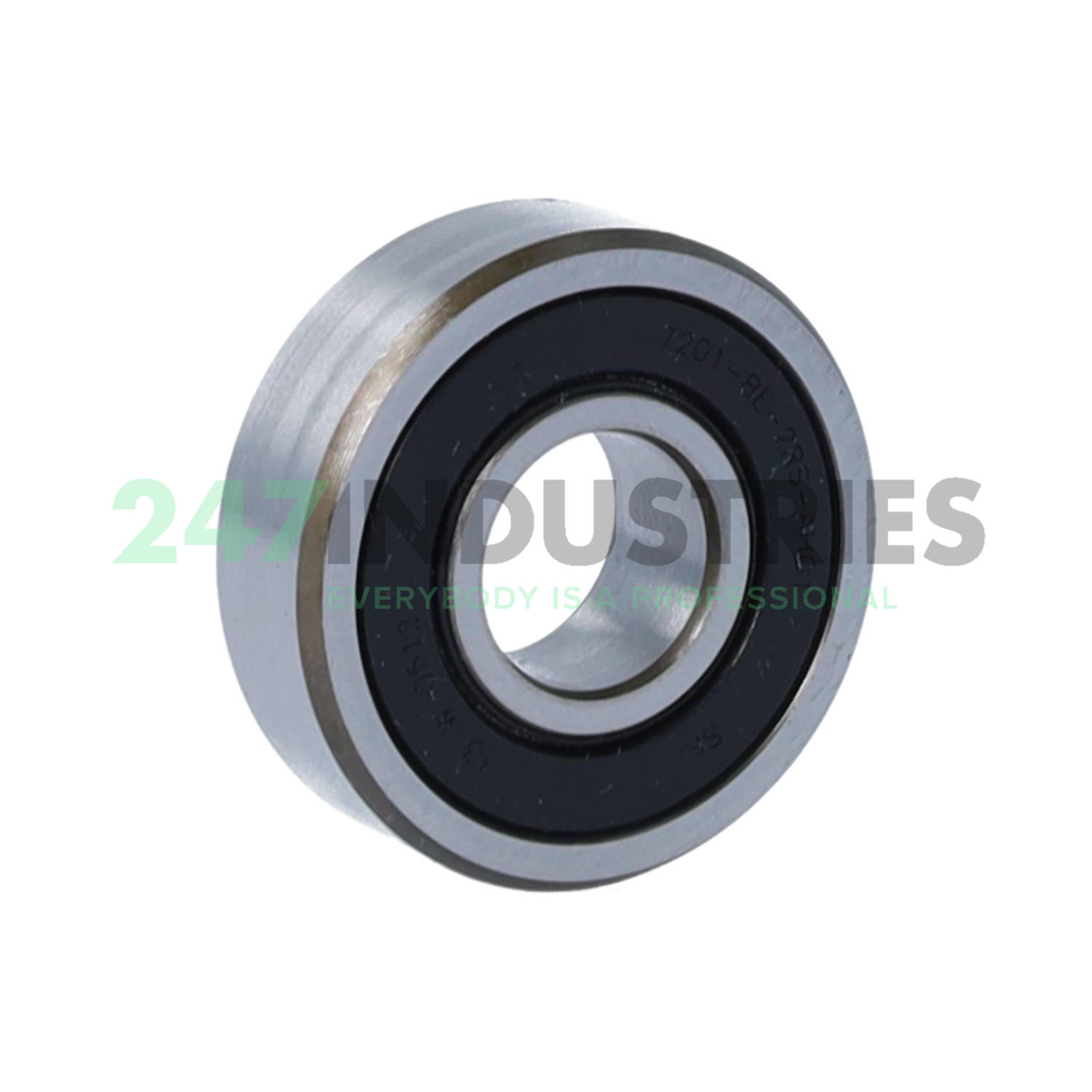

7201-BE-2RS-AH01 INA

All dimensions

1. Inner (d) MM 12,5
2. Outer (D) MM 32
3. Width (B) MM 10
4. Inner (d) Inch 0.4921
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3937

Suffix description

1. B 40° Contact Angle
2. E Rolling Element Enhanced Towards Standard Rolling Element
3. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
4. AH01 Design Modifications

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 7201-BE-2RS-AH01 INA
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.033

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
