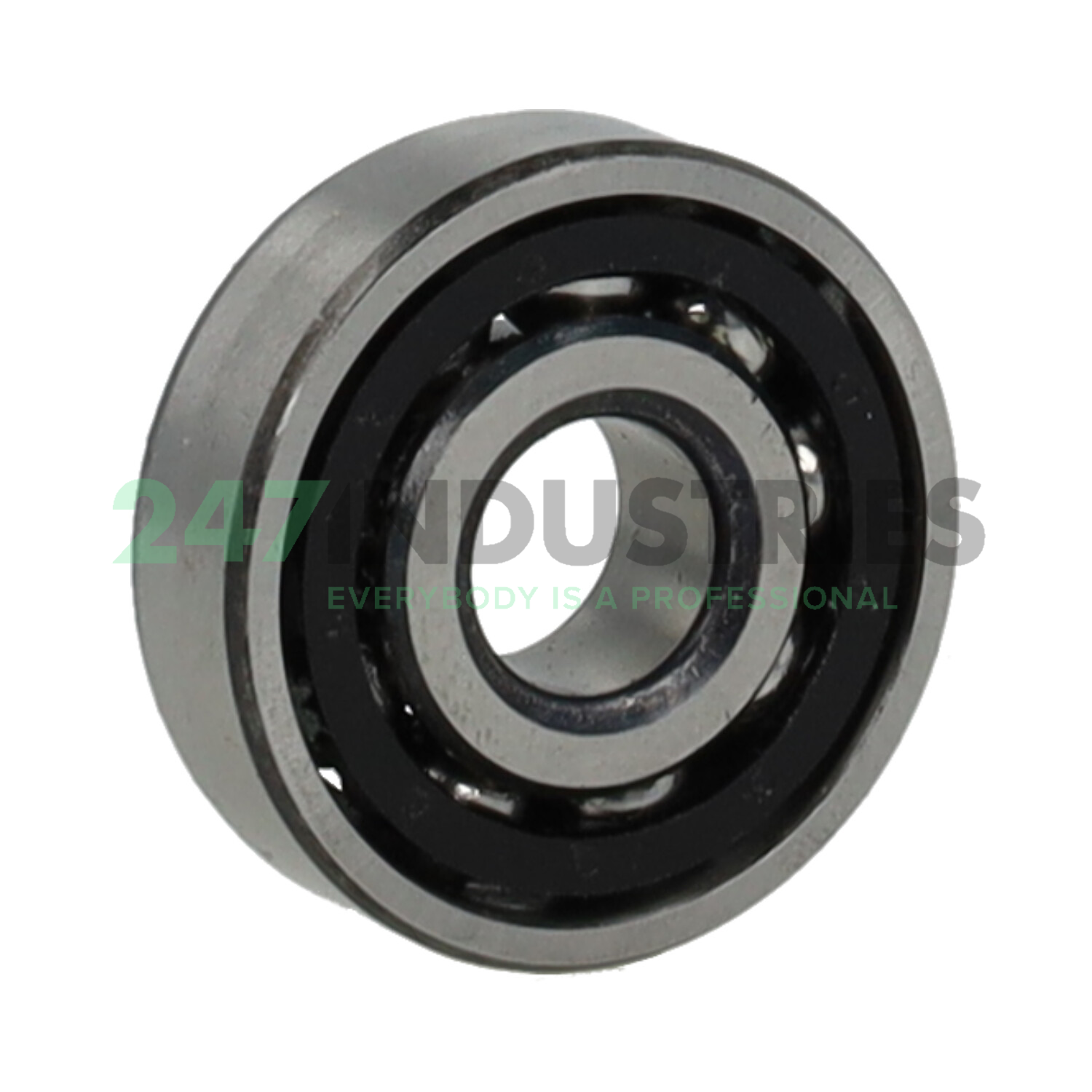

7200BE TNG ZKL

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 30
3. Width (B) MM 9
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.1811
6. Width (B) Inch 0.3543

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
2. TNG Machined Cage Made Of Polyamide Or Similar Plastic With Glass Fibre, Rolling Elements Centered

Technical details

1. Availability 1 pc
2. Brand ZKL
3. Item number 7200BE TNG ZKL
4. Also known as 7200BEP
   7200BTN1
   7200-B-TVP
   7200-B-XL-TVP

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.031

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
