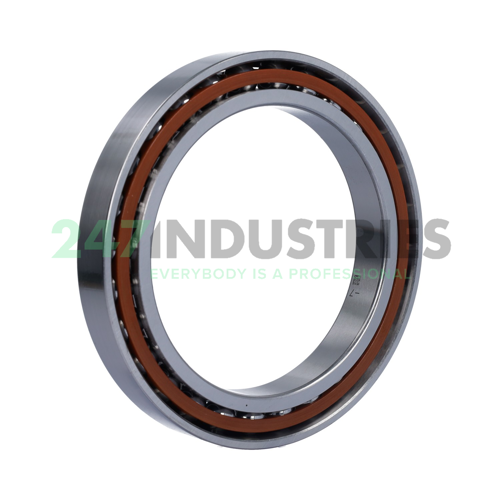

71924ACDGA/P4A SKF

All dimensions

1. Inner (d) MM 120,00
2. Outer (D) MM 165,00
3. Width (B) MM 22,00
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 6.4961
6. Width (B) Inch 0.8661

Suffix description

1. ACD 25° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number 71924ACDGA/P4A SKF
4. Also known as 3MM9324WI CR SUL
   7924UAD T1 G/GL P42
   B71924E.T.P4S.UL
   SEB120 7CE3 UL

5. EAN 7316571006390
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.15

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
