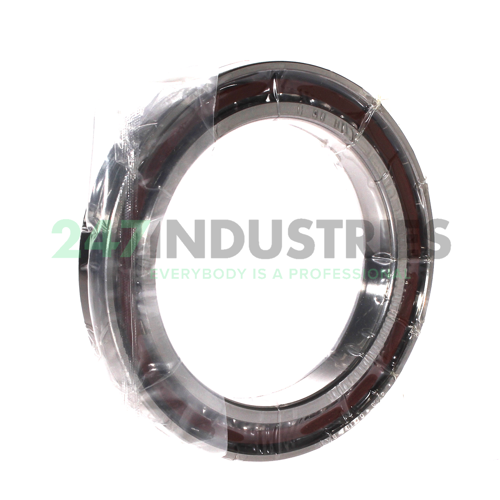

71920CDGA/P4A SKF

All dimensions

1. Inner (d) MM 100,00
2. Outer (D) MM 140,00
3. Width (B) MM 20,00
4. Inner (d) Inch 3.9370
5. Outer (D) Inch 5.5118
6. Width (B) Inch 0.7874

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 7 pcs
2. Brand SKF
3. Item number 71920CDGA/P4A SKF
4. Also known as 1920HEUL
   3MM9320WI CR SUL
   7920C TR SUM P4
   79220UAD T1 G/GL P42
   B71920E.T.P4S.UL
   SEB100 7CE3 UL

5. EAN 7316570370379
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.8

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
