71916HV DU J74 SNR

All dimensions

1. Inner (d) MM 80,00
2. Outer (D) MM 110,00
3. Width (B) MM 32,00

Suffix description

1. H 25° Contact Angle
2. V Laminated Phenolic Cage Centered On Outer Ring
3. DU Angular Contact Bearing Assembly With Two Bearings That Can Be Matched DB, DF Or DT
4. J74 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-Abec7,
5. 7 Light Preload

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 71916HV DU J74 SNR

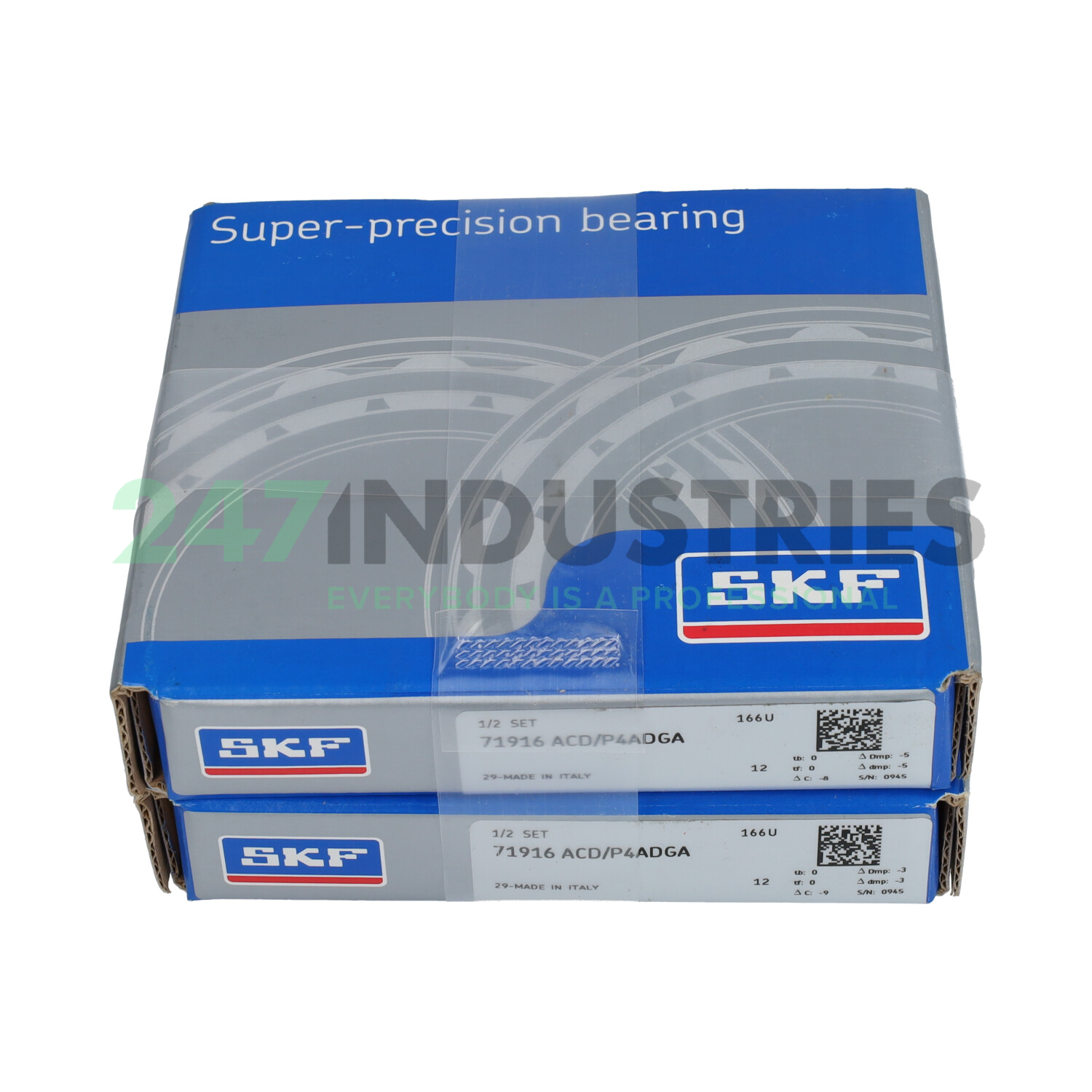

4. Also known as 71916ACD/P4ADGA

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.74

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
