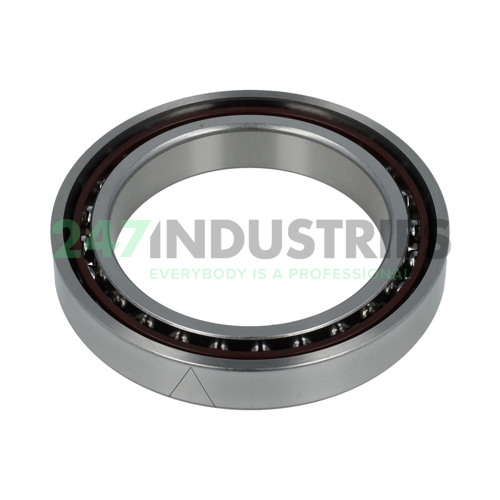

71914HVUJ94 SNR

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 100
3. Width (B) MM 16
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.6299

Suffix description

1. H 25° Contact Angle
2. V Laminated Phenolic Cage Centered On Outer Ring
3. U Universal Single Bearing
4. J94 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec7,
5. 9 Heavy Preload

Technical details

1. Availability 6 pcs
2. Brand SNR
3. Item number 71914HVUJ94 SNR
4. Also known as 71914ACDGC/P4A

5. EAN 3413520312923
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.33

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GC - Heavy Preload
7. Lubrication Standard Lubrication
